SPECIFICATIONS

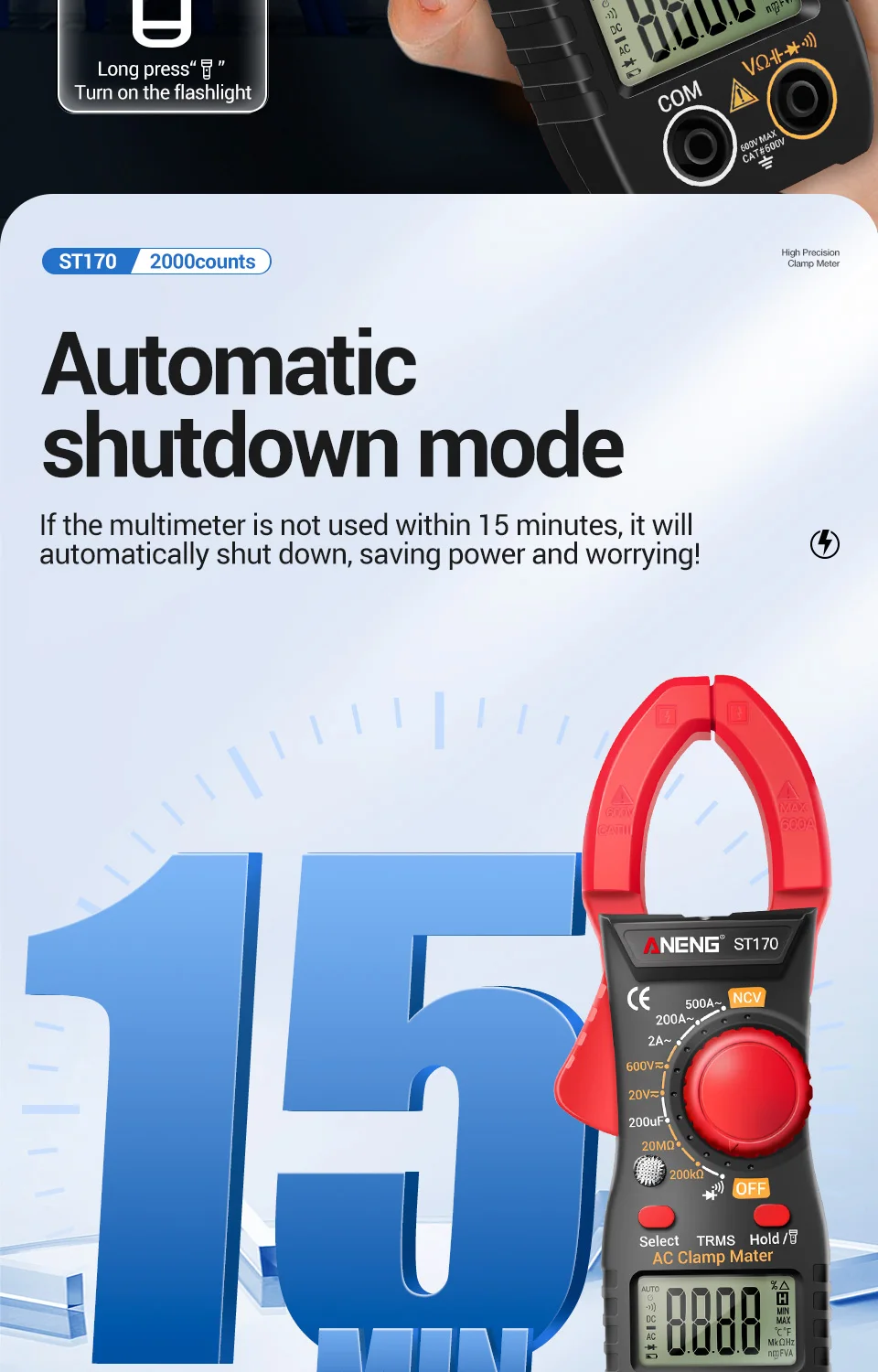

Automatic shut-down: Yes
Battery Included: No
Battery Type: AAA*2
Brand Name: ANENG
Capacitance: Yes
Certification: CE,None
Choice: yes
DIY Supplies: Electrical
Data Retention: Yes

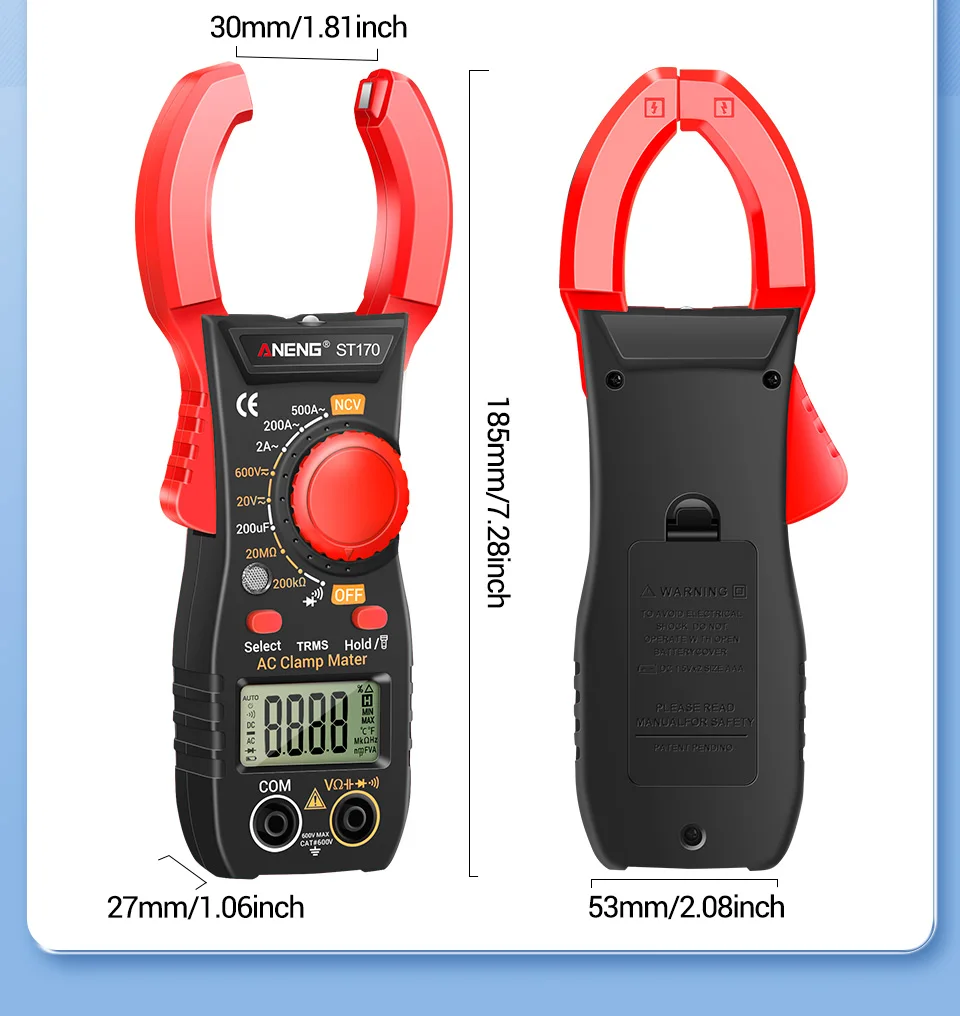

Dimensions: 185*50*25MM
Diode: Yes
Display: 1999 Counts
Display Type: Digital Only
Flashlight: Yes
Hign-concerned Chemical: None
Measuring Capacitance Range: 200uF
Measuring Current Range: AC Current
Measuring Inductance Range: –
Measuring Resistance Range: 200k/20M
Measuring Voltage Range: AC Voltage

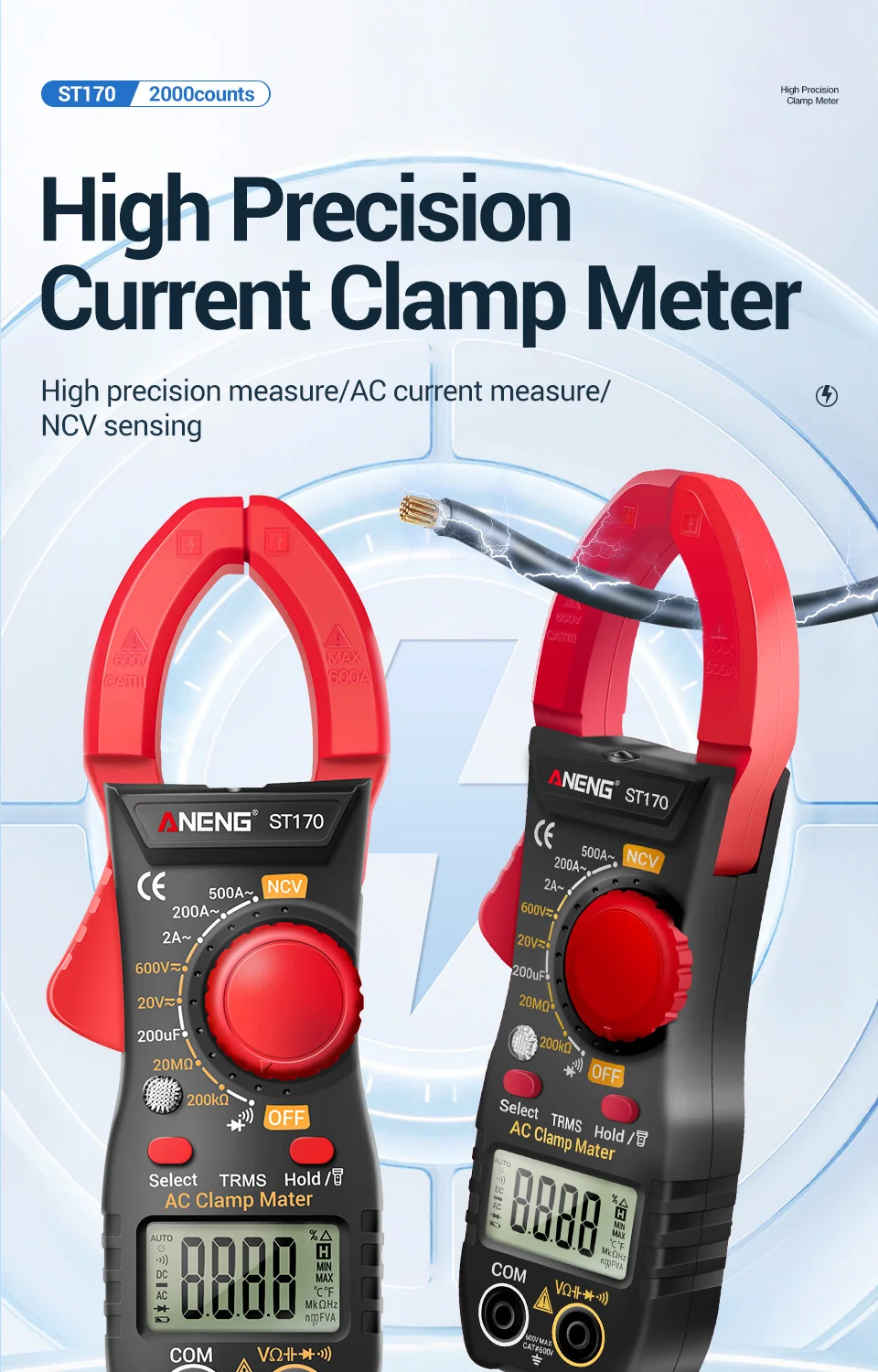

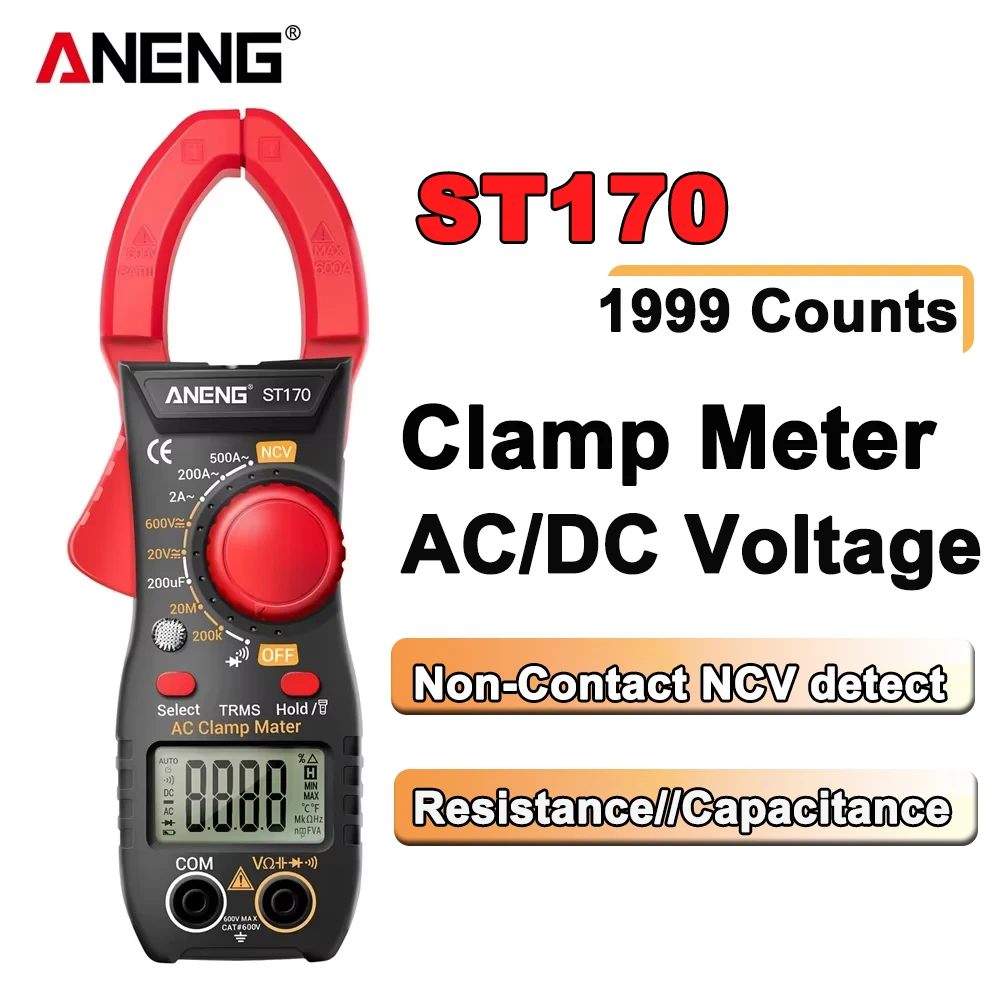

Model Number: ANENG ST170 Digital Professional Clamp Meter

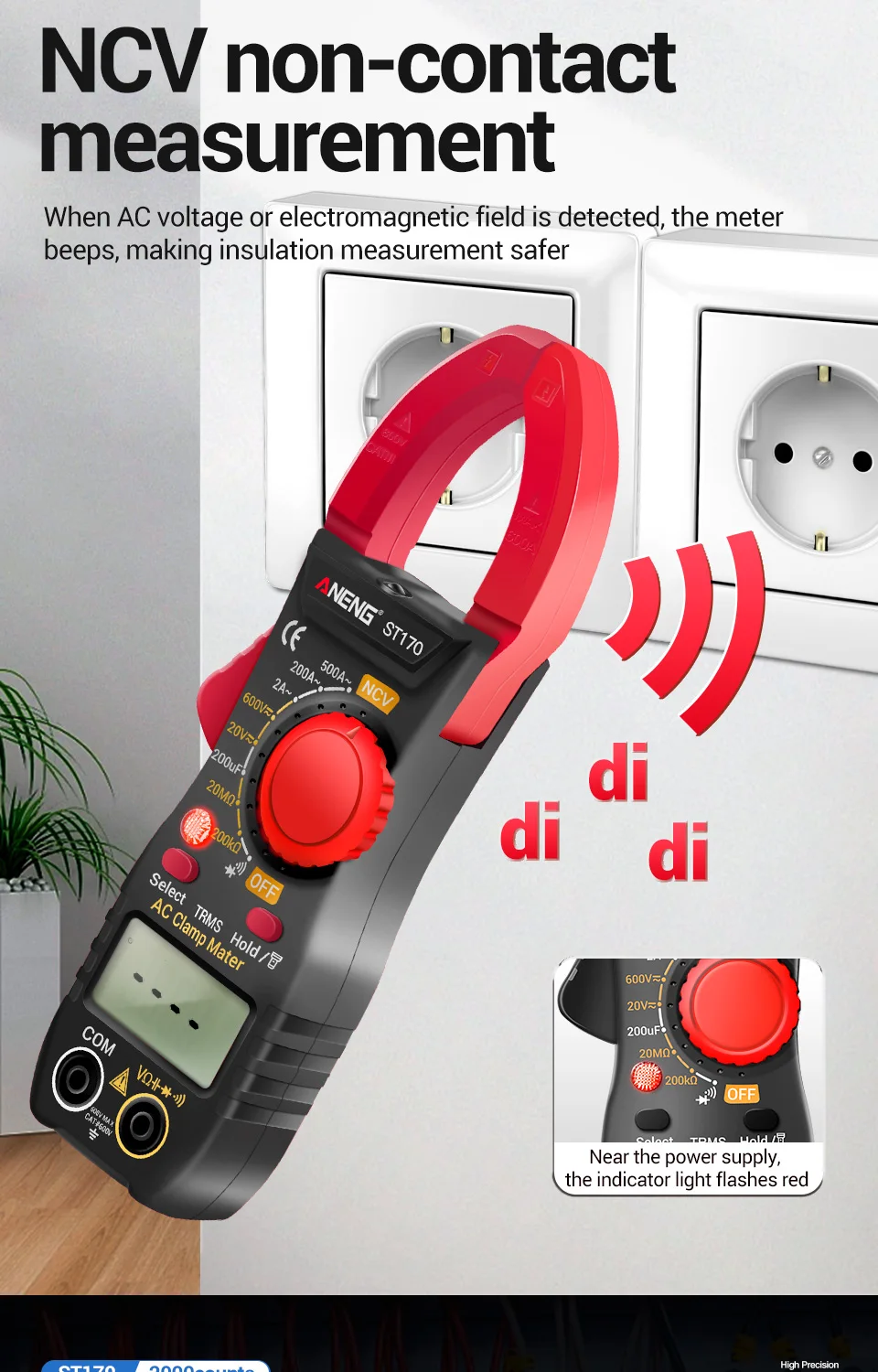

NCV: Yes
Operating Temperature: 0~40
Origin: Mainland China
Resistance: Yes
Weight: 131G

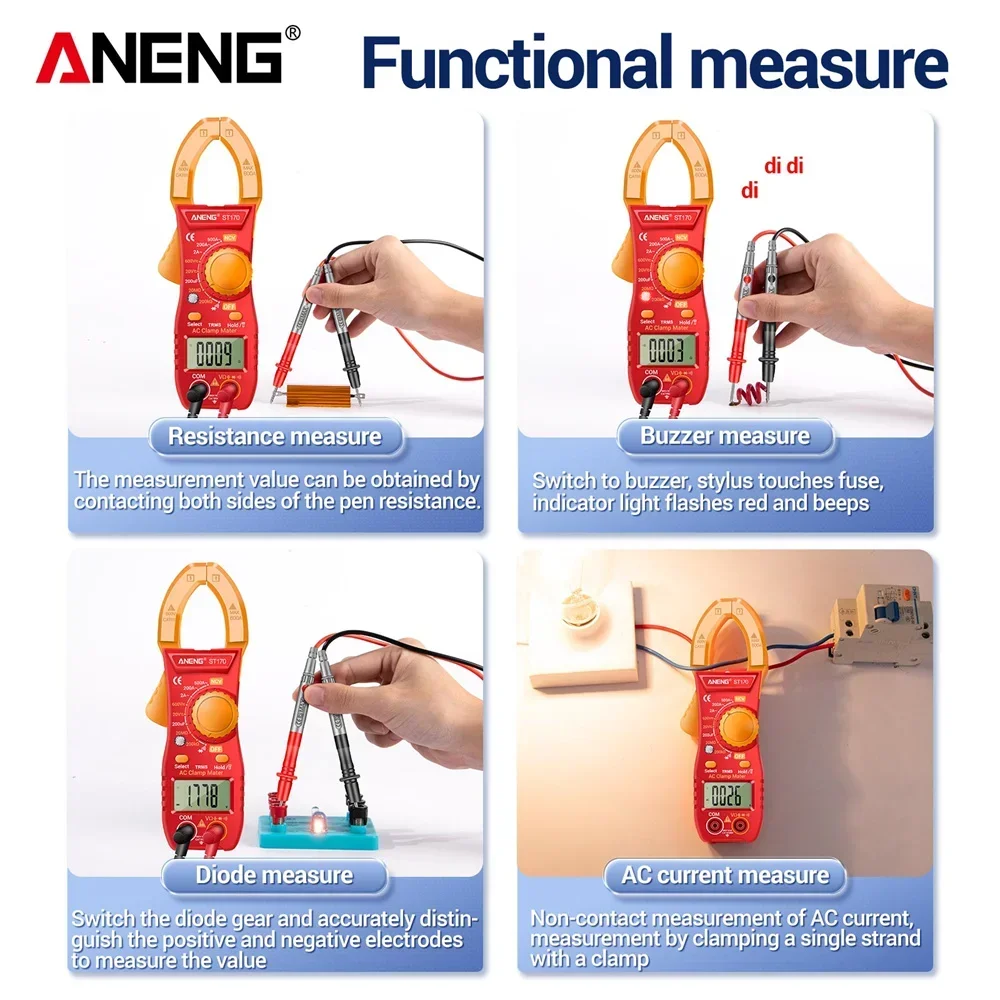

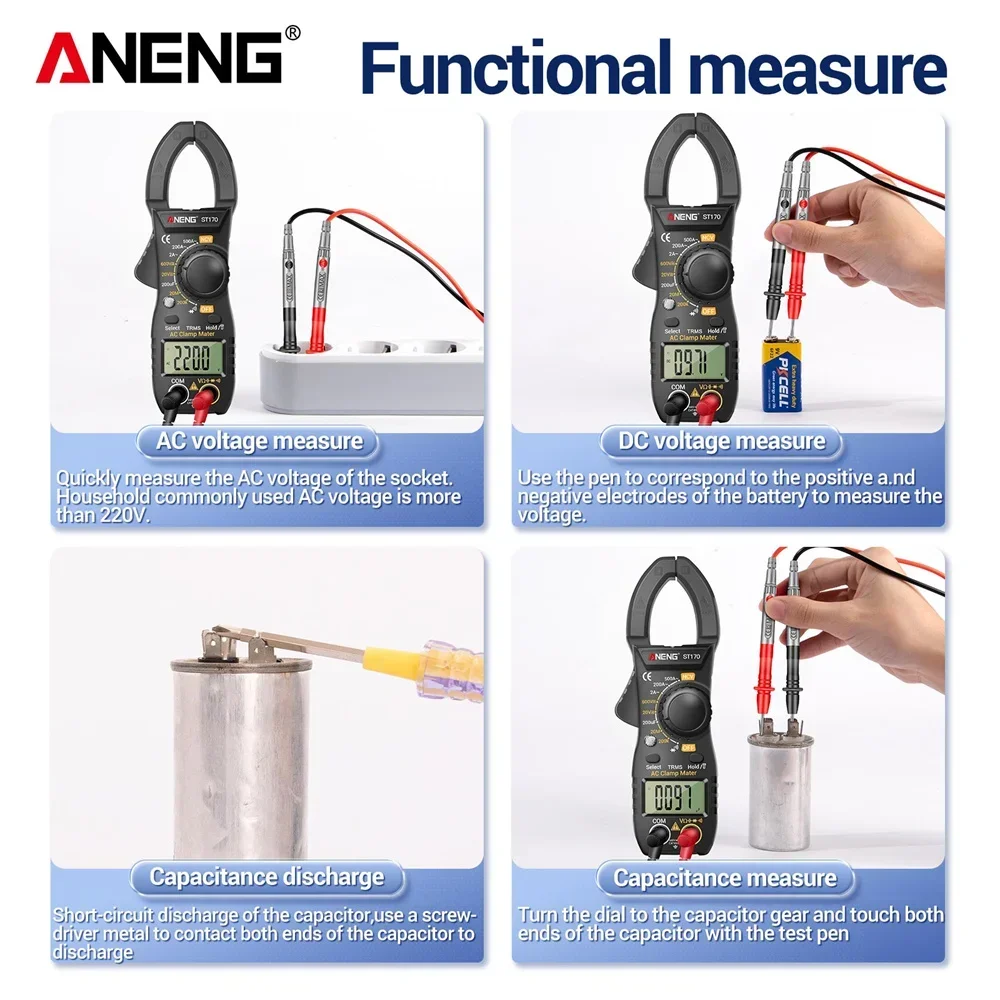

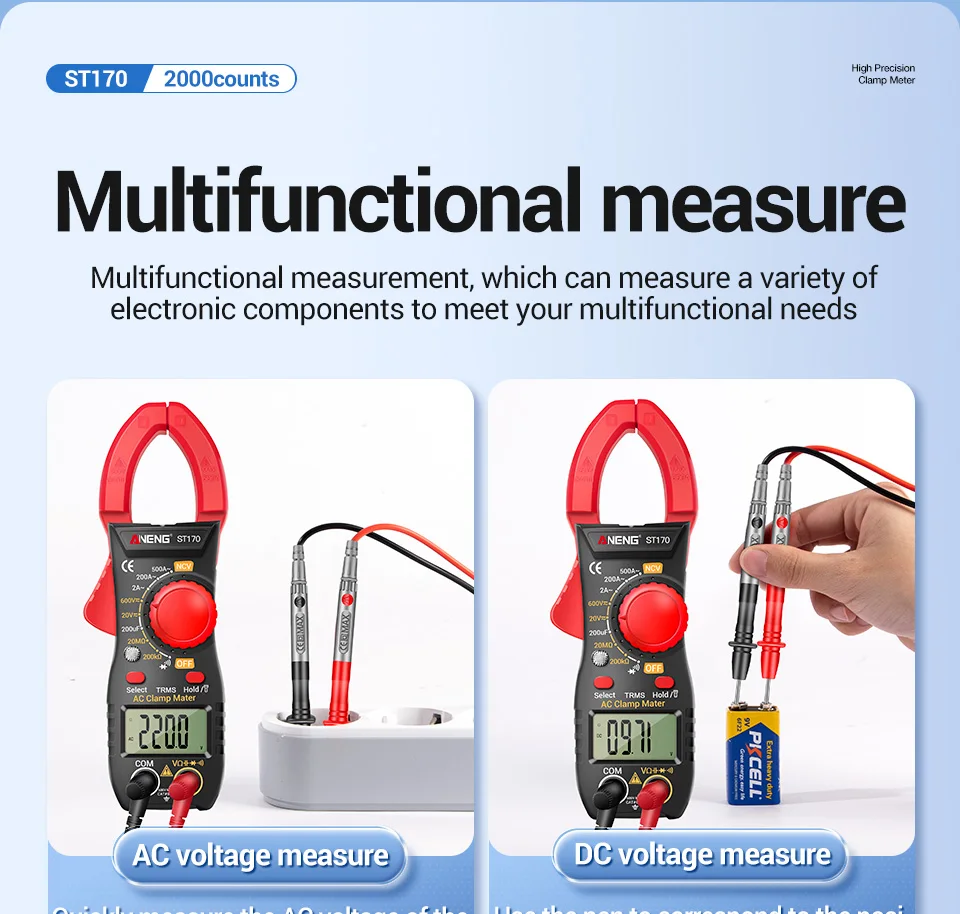

This instructment performs AC/DC voltage, AC current, Resistance, Didoe, and Non-Contact ACV detect(NCV) as well as Capacitance, etc.

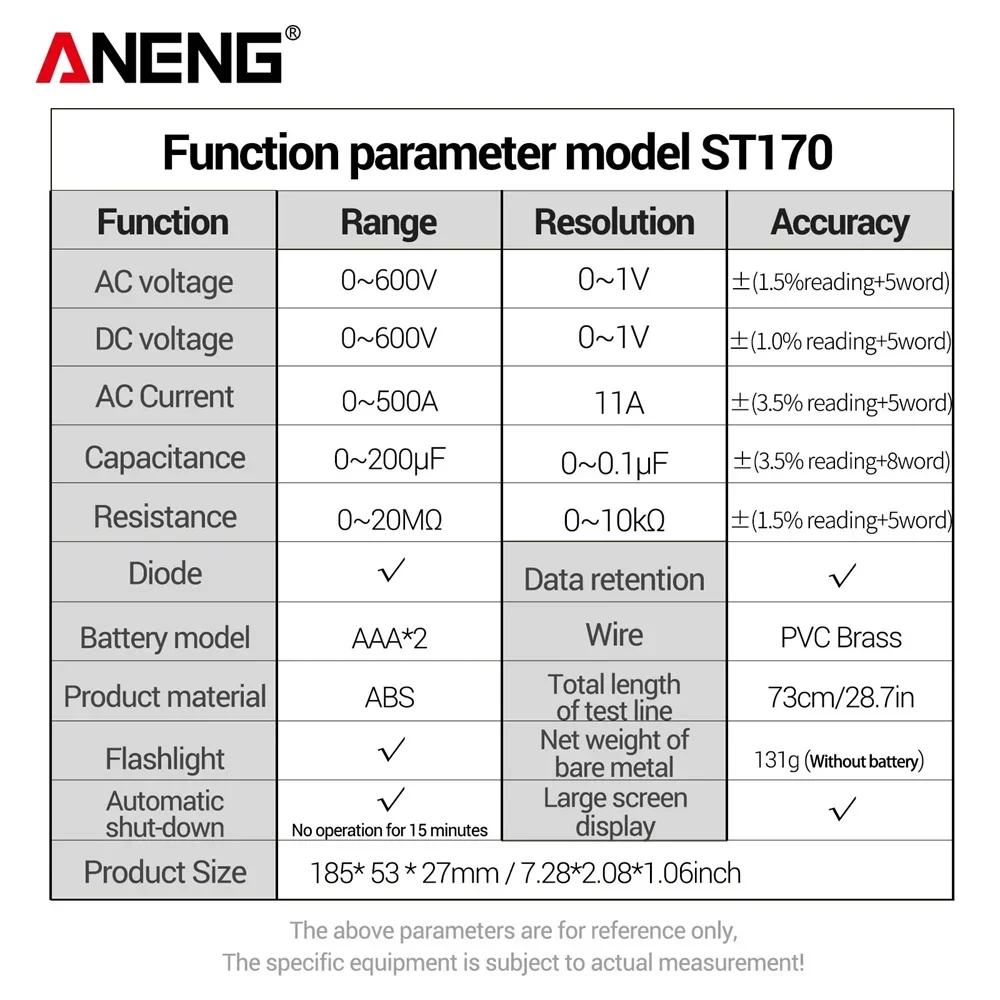

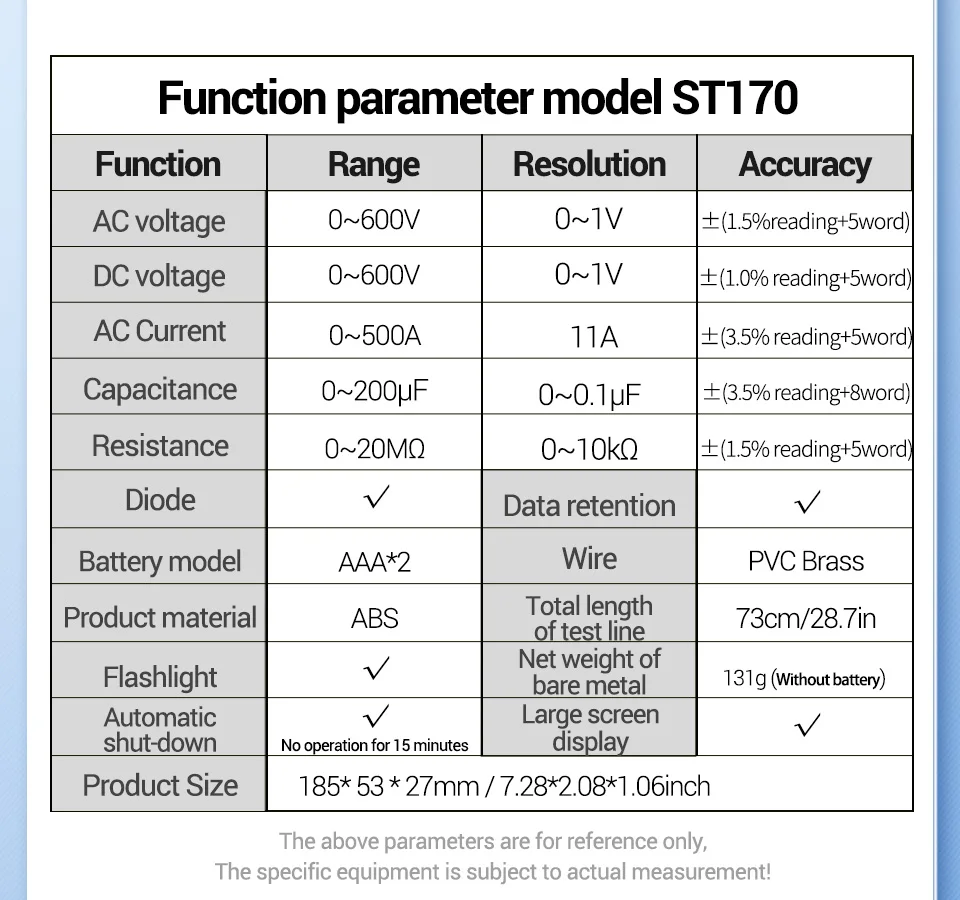

B.Specification:
|
Model |
ST170 |
Display |
1999 Counts |
|
Range |
Accuracy |
|
|
AC Voltage |
20V/600V |
±(1.5%+5) |
|
DC Voltage |
20V/600V |
±(1.0%+5) |
|

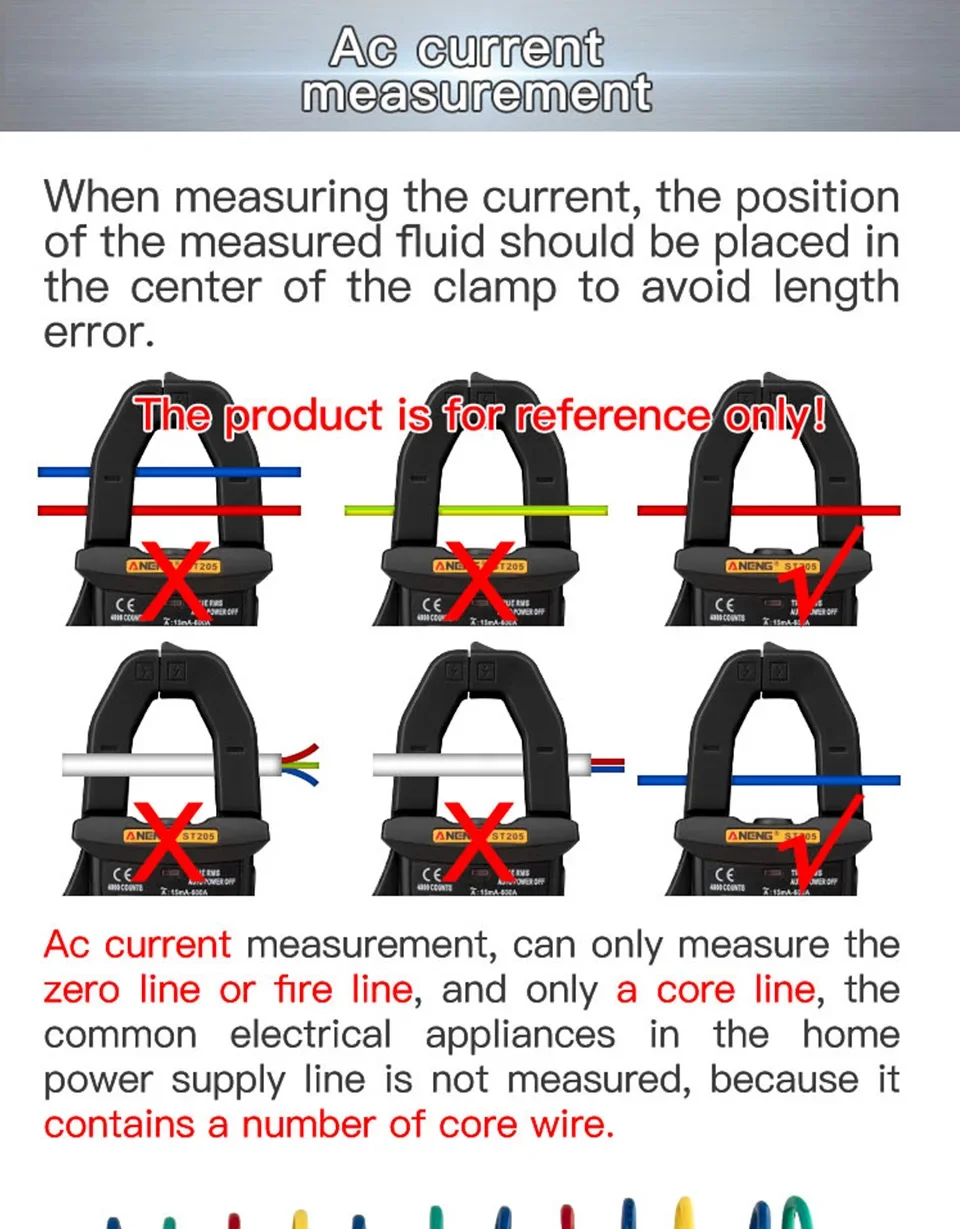

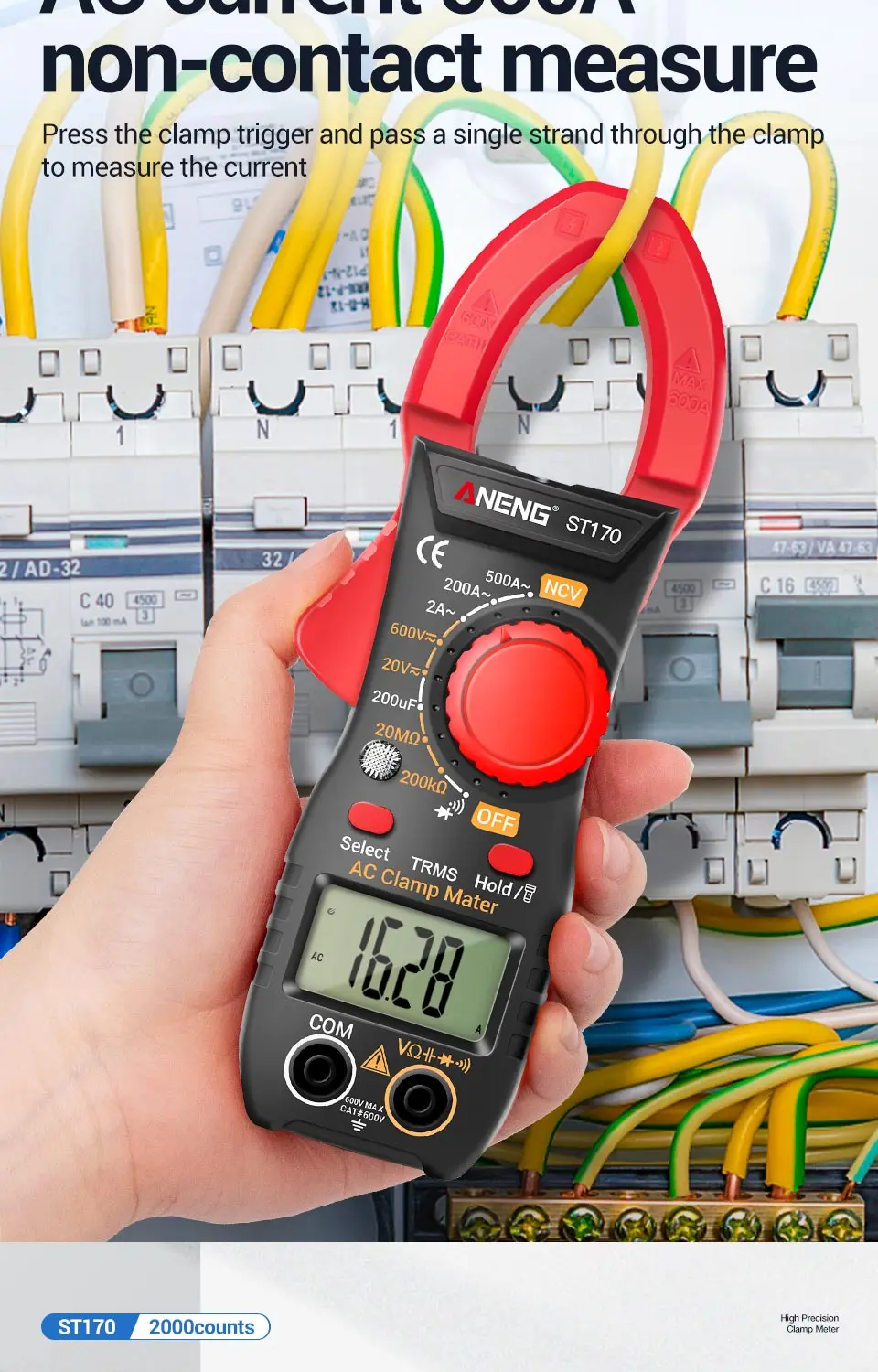

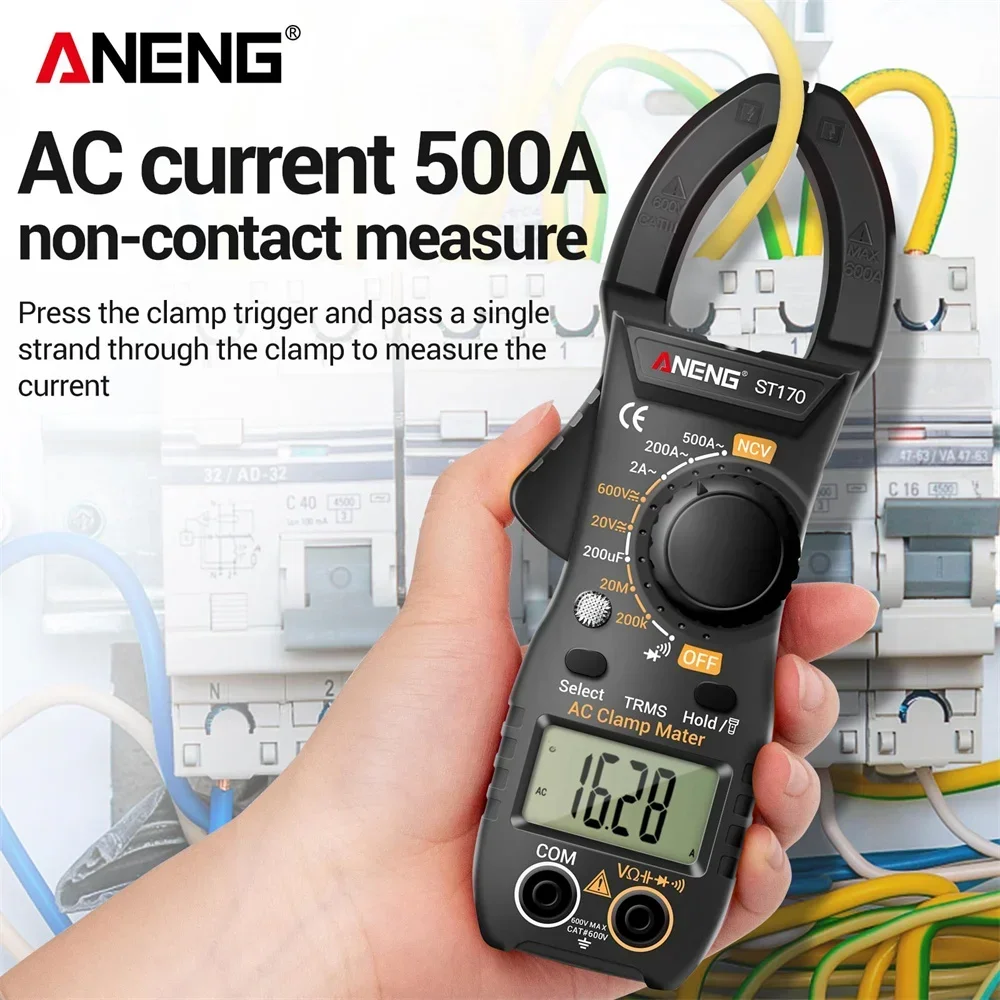

AC Current |
2A/200A |
±(2.5%+3) |
|
500A |
±(3.5%+5) |
|
|
Resistance |
200k omh |
±(1.0%+3) |
|
20M omh |
±(1.2%+5) |
|
|
Capacitance |
200uF |
±(3%+10) |

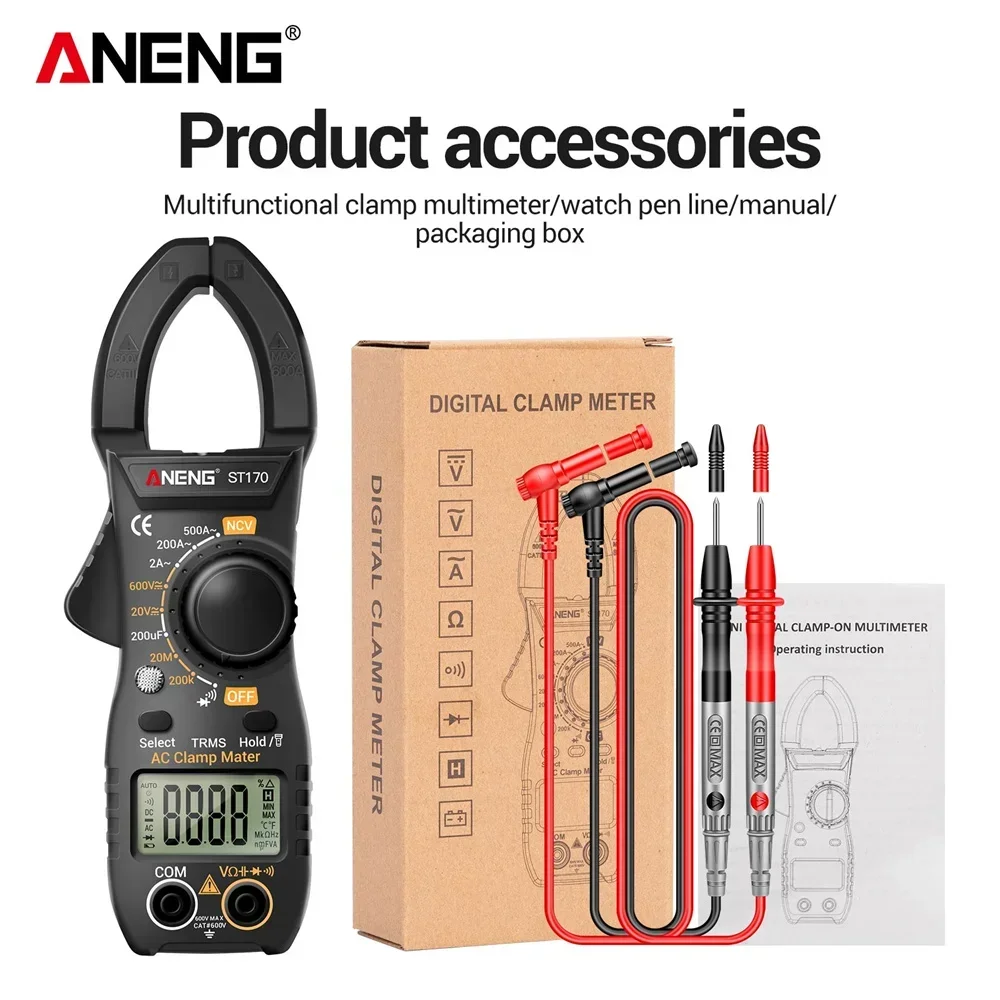

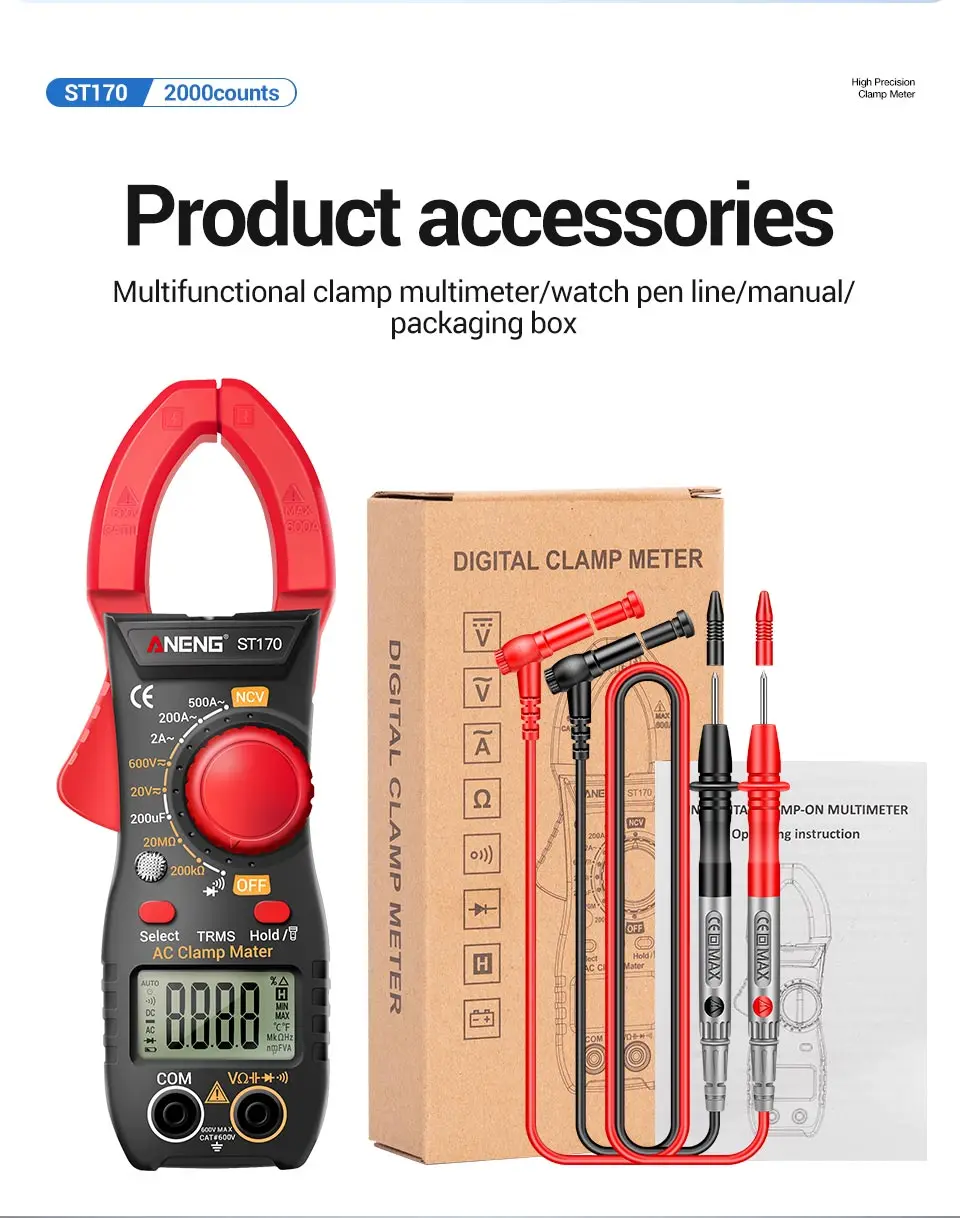

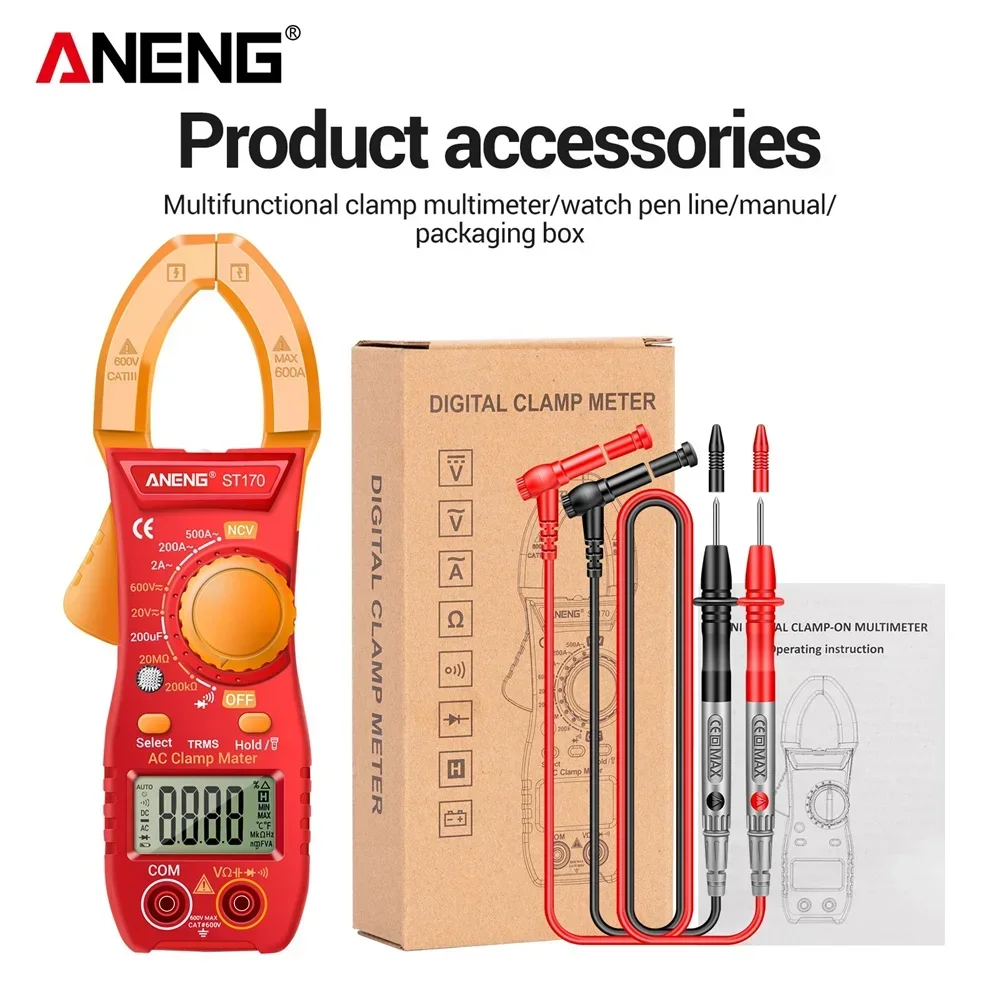

1*clamp meter(Not included Battery)
1*Test lead wire
1*Manual
