SPECIFICATIONS
Brand Name: YOMO
Choice: yes
DIY Supplies: Woodworking
Hign-concerned Chemical: None
Length: 180mm
Material: High Speed Steel
Model Number: MD30
Origin: Mainland China
Type: Countersink Drill Bits
Use: Wood Drilling
is_customized: Yes

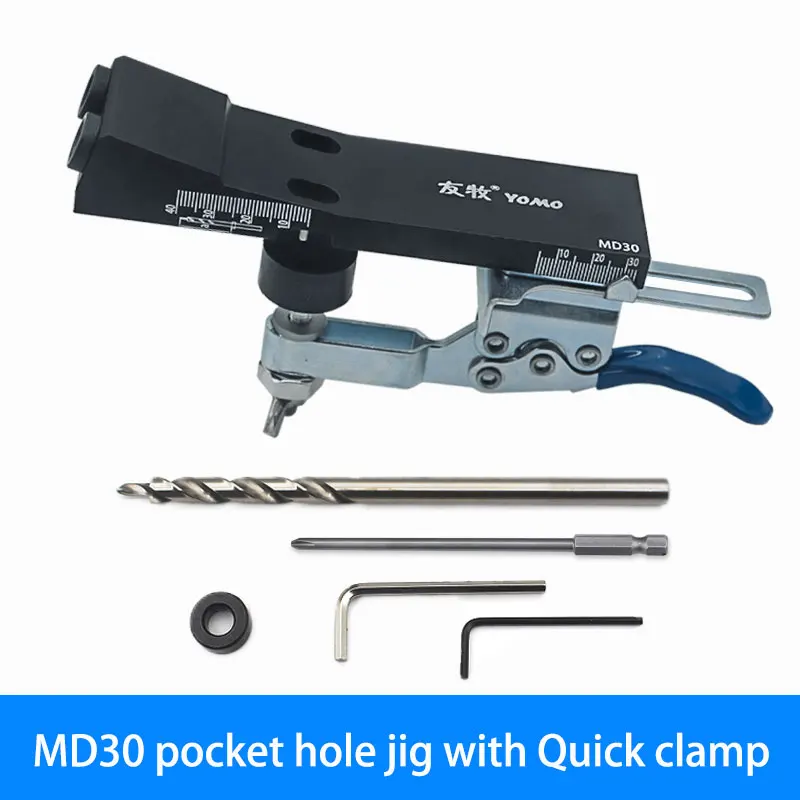

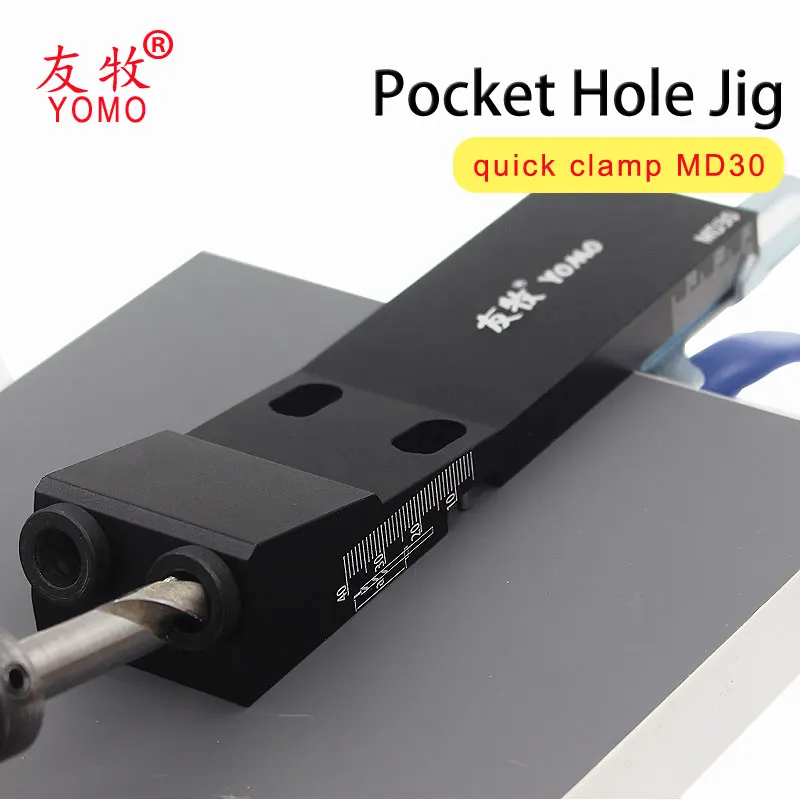

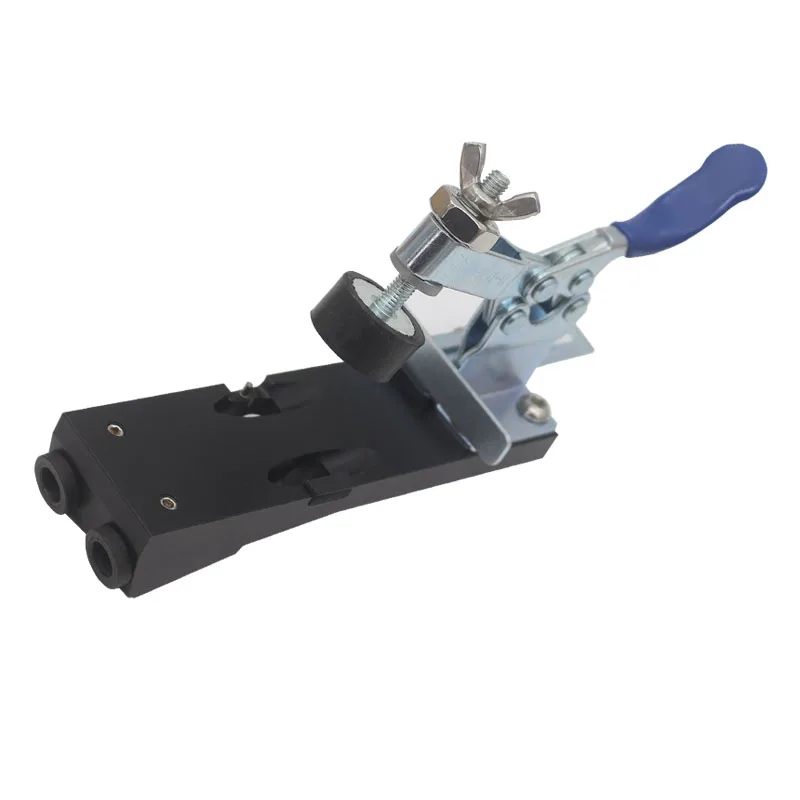

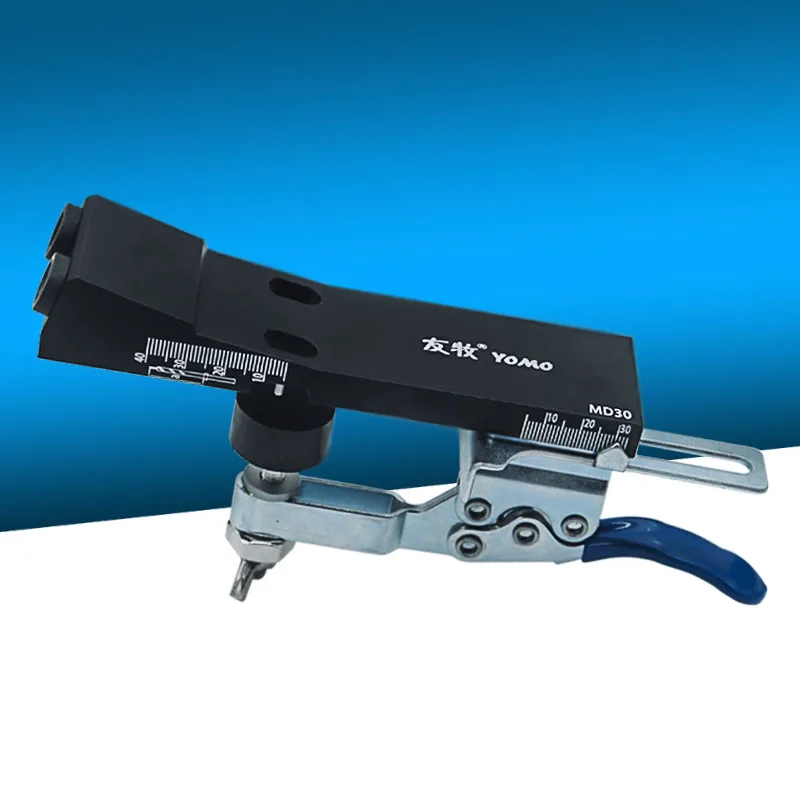

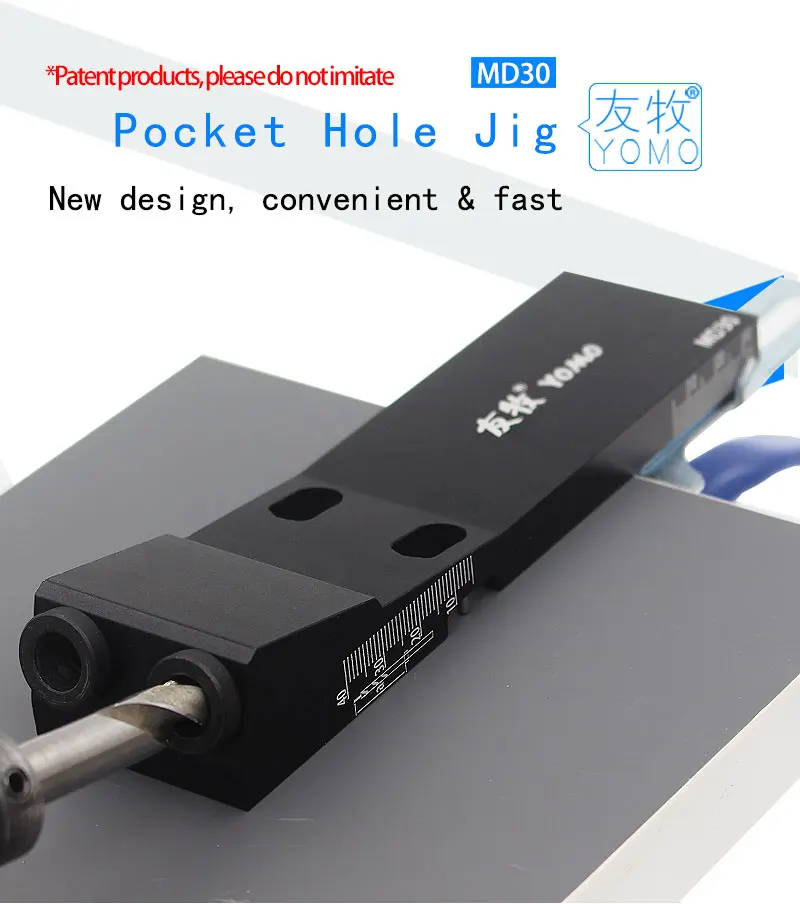

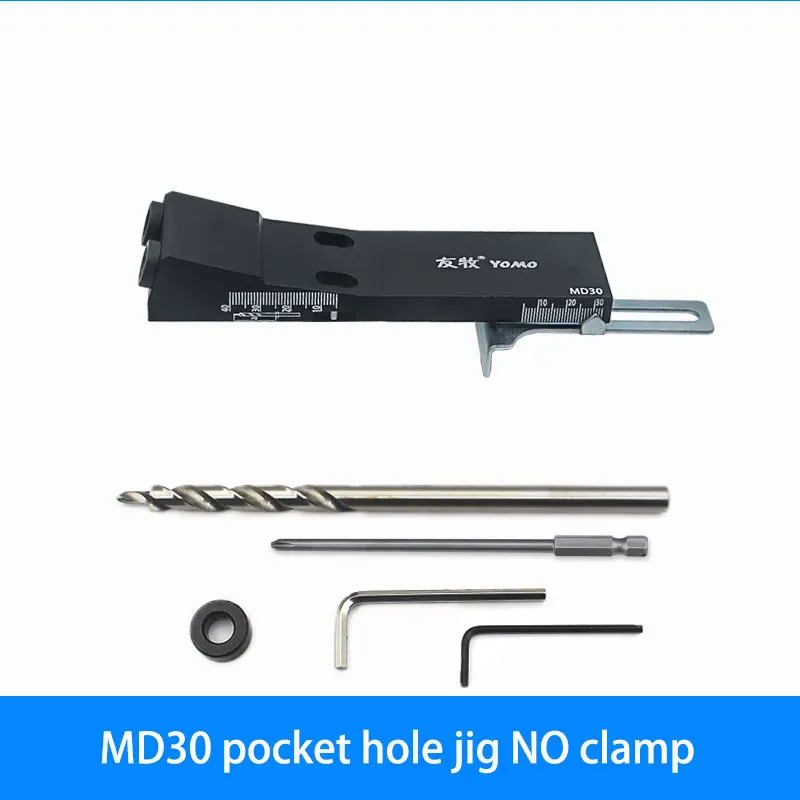

All Metal Pocket Hole Jig Kit with Quick Clamp and Step Drill Bits Easy Use 2 Holes Pocket Hole Screw Jig System MD30

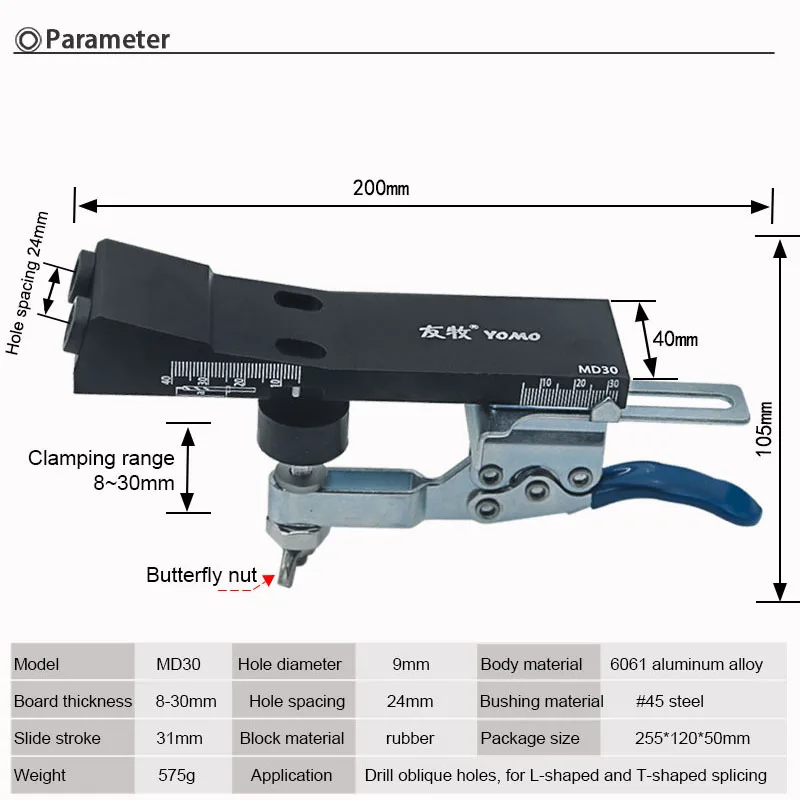

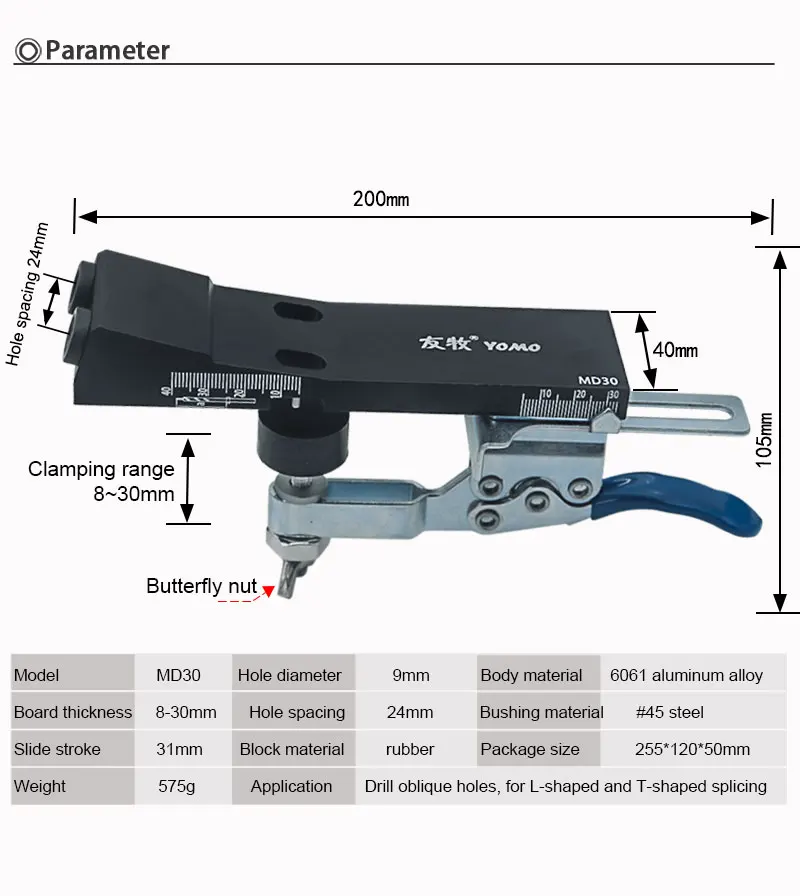

Parameter
|
Name |
Quick clamp Pocket Hole jig |
|
Brand |
YOMO |
|
Model |
MD30 |
|
Materail: |
Aluminum alloy (body) |
|
Angle of oblique hole |
15 degrees |
|
Suitable board thickness |
8-30mm |
|

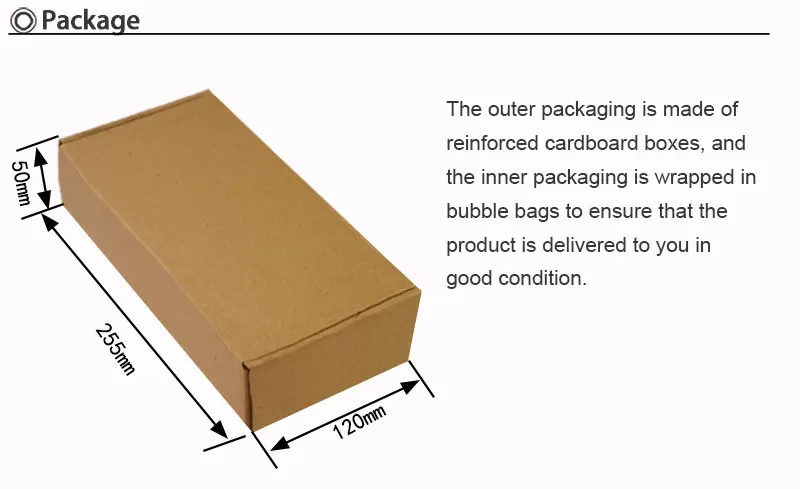

Packing size |
260*120*50mm |
|
Weight |
0.585kg |

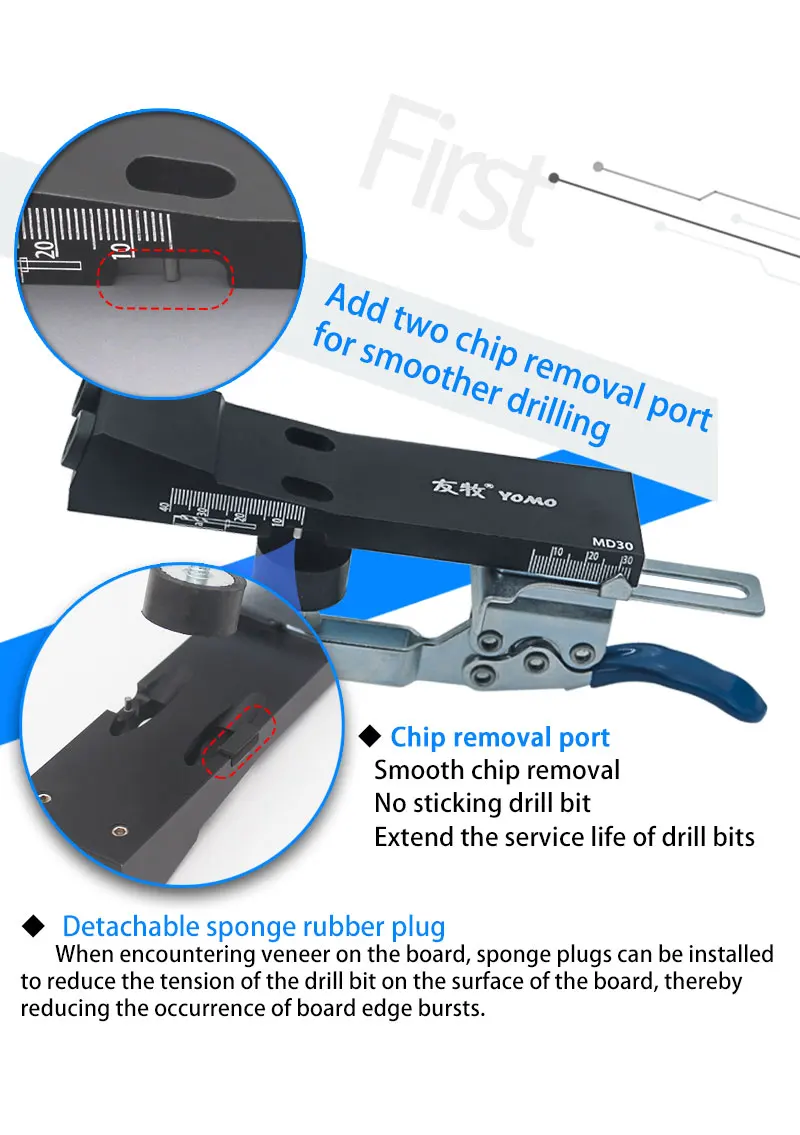

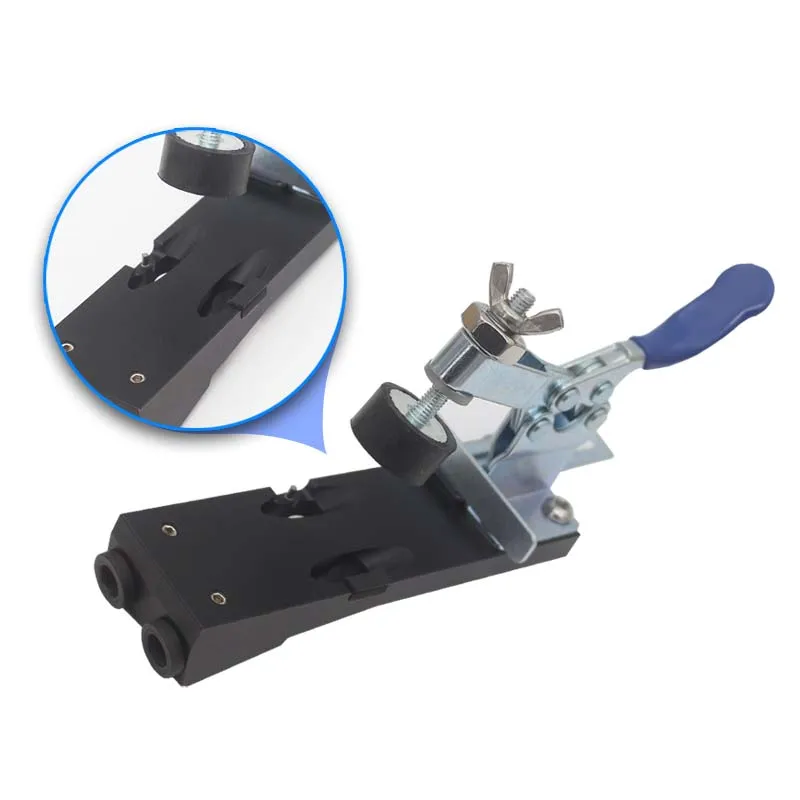

Add two chip removal port for smoother drilling

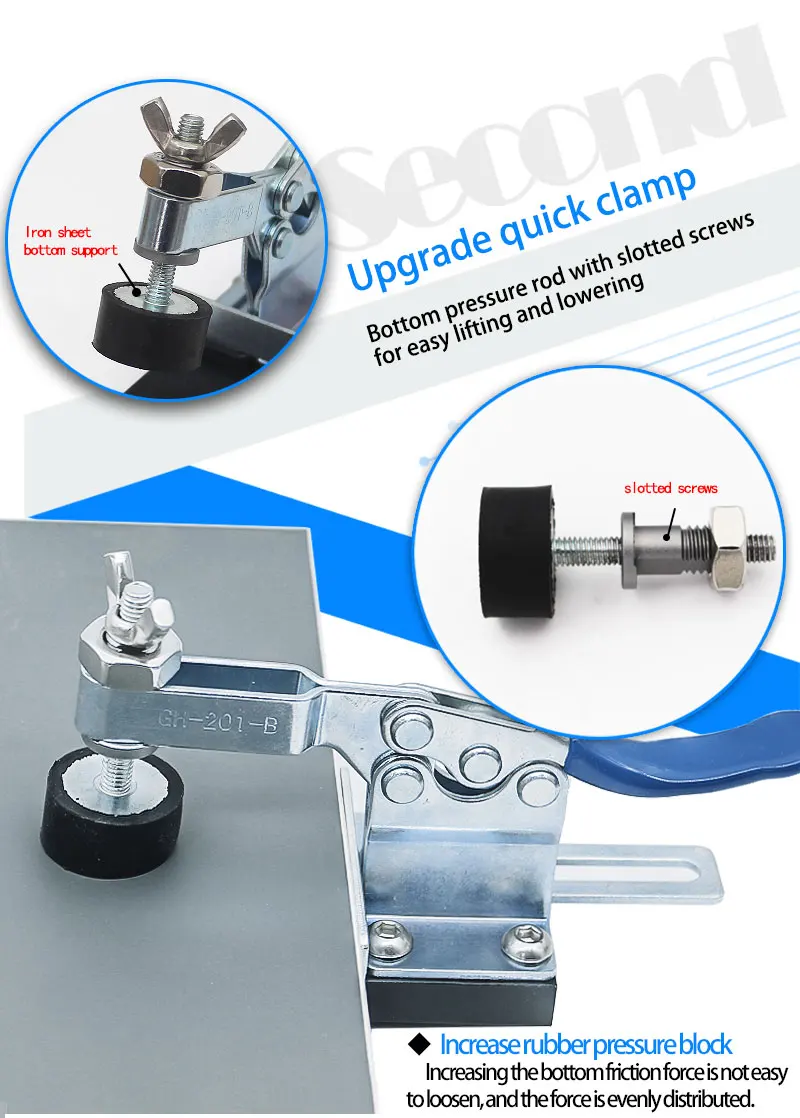

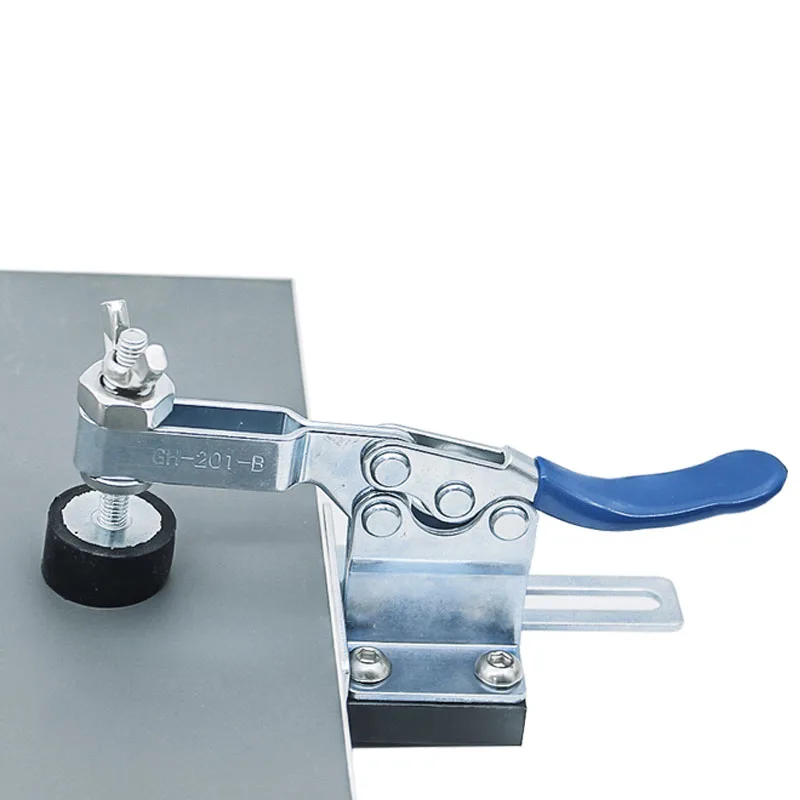

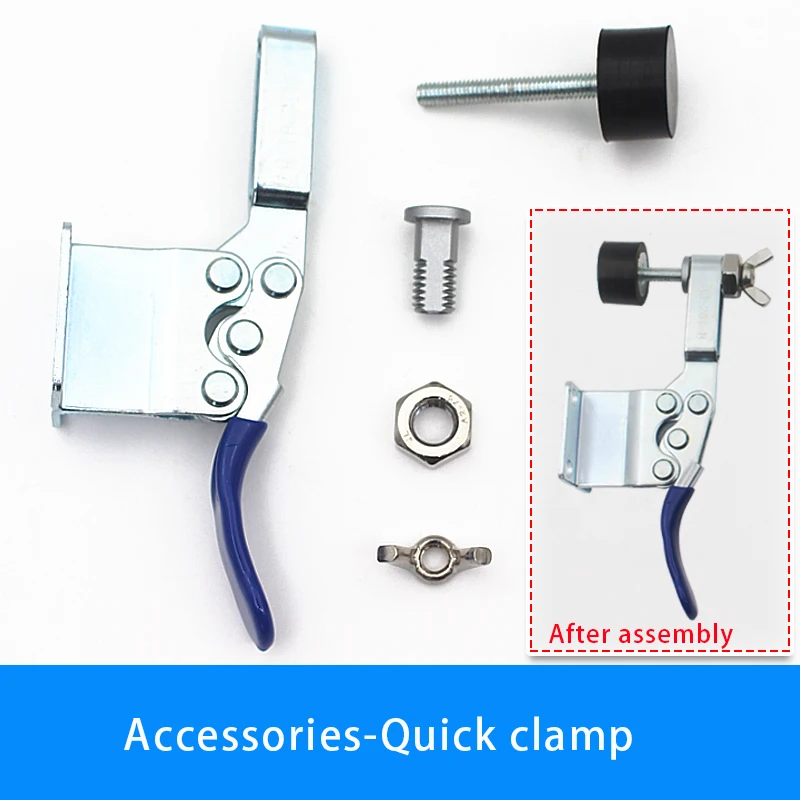

Upgrade quick clamp
Bottom pressure rod with slotted screws for easy lifting and lowering

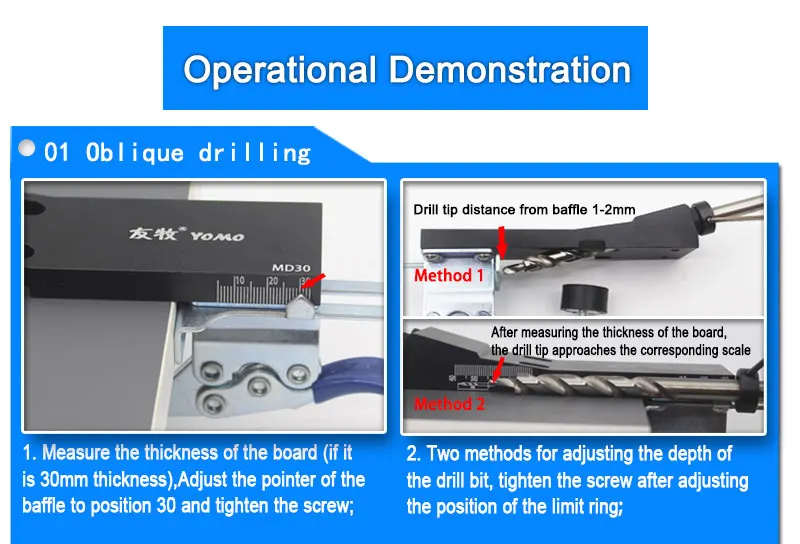

1. Measure the thickness of the board (if itis 30mm thickness),Adjust the pointer of thebaffle to position 30 and tighten the screw;
2. Two methods for adjusting the depth ofthe drill bit, tighten the screw after adjustingthe position of the limit ring;

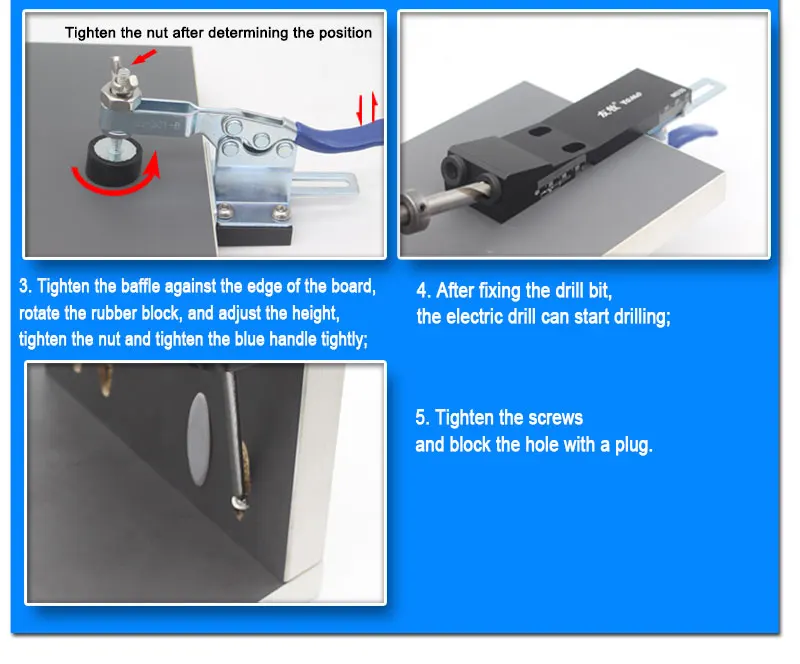

3. Tighten the baffle against the edge of the board,rotate the rubber block, and adjust the height,tighten the nut and tighten the blue handle tightly;
4. After fixing the drill bit,the electric drill can start drilling;
5. Tighten the screws
and block the hole with a plug.
