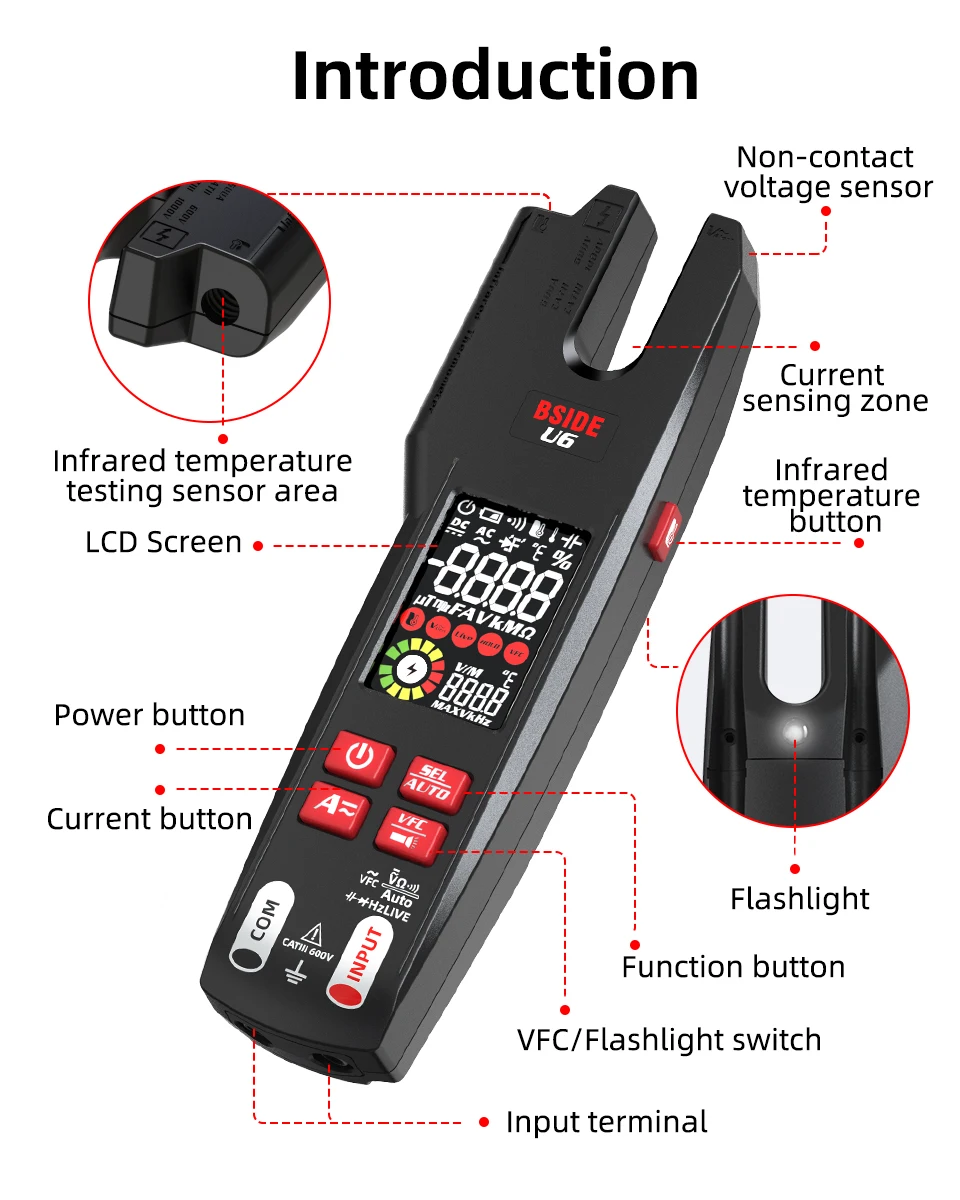

This is a new upgraded U-type professional digital clamp meter, which is safer to use, more accurate figures, and meets most working conditions.

Peculiarity

1. U-shaped design is convenient for current testing and maintenance

2. The casing has been comprehensively upgraded, the texture has been improved, and the process has exploded

3. Oversized body design makes testing safer

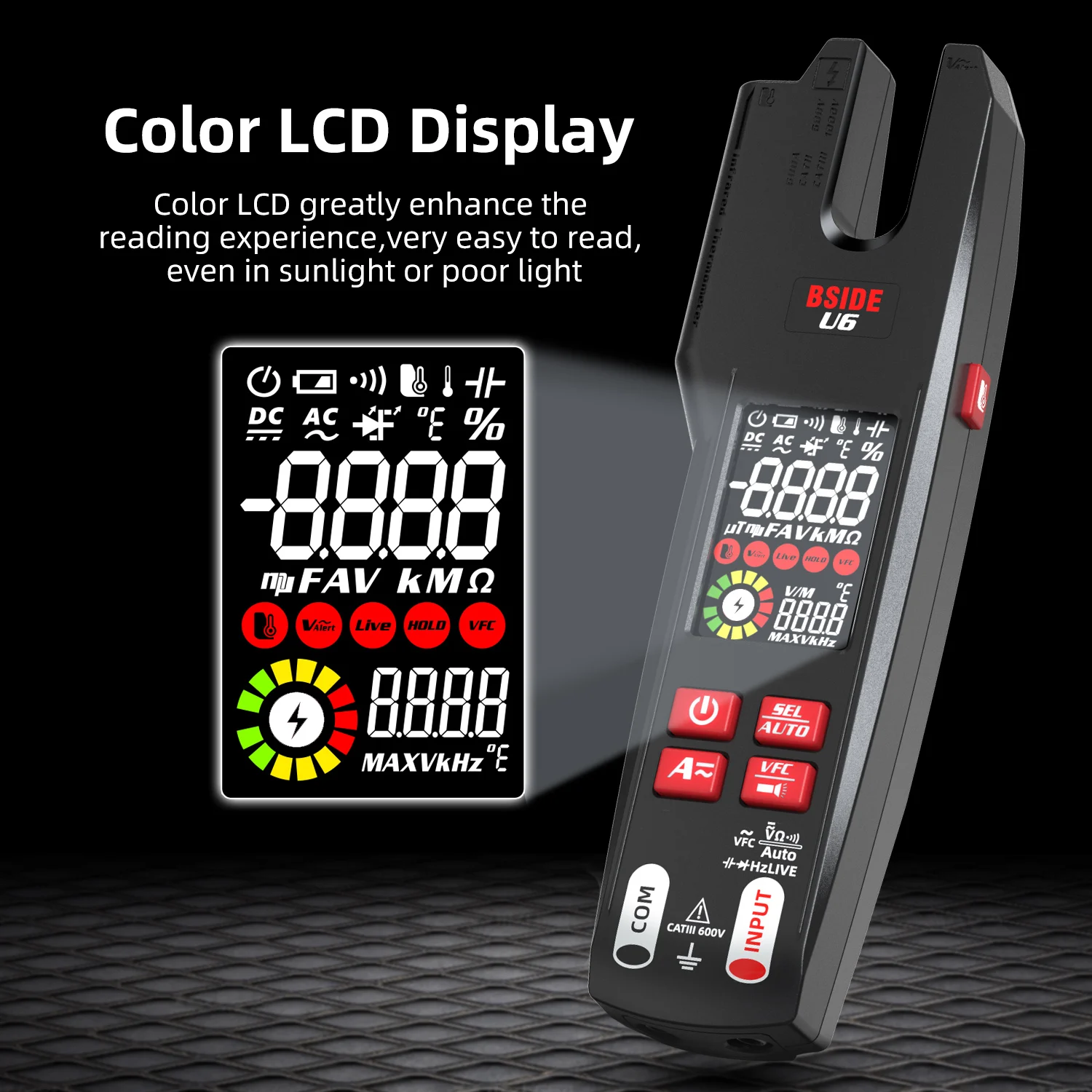

4. Large-screen intelligent dual-mode power supply

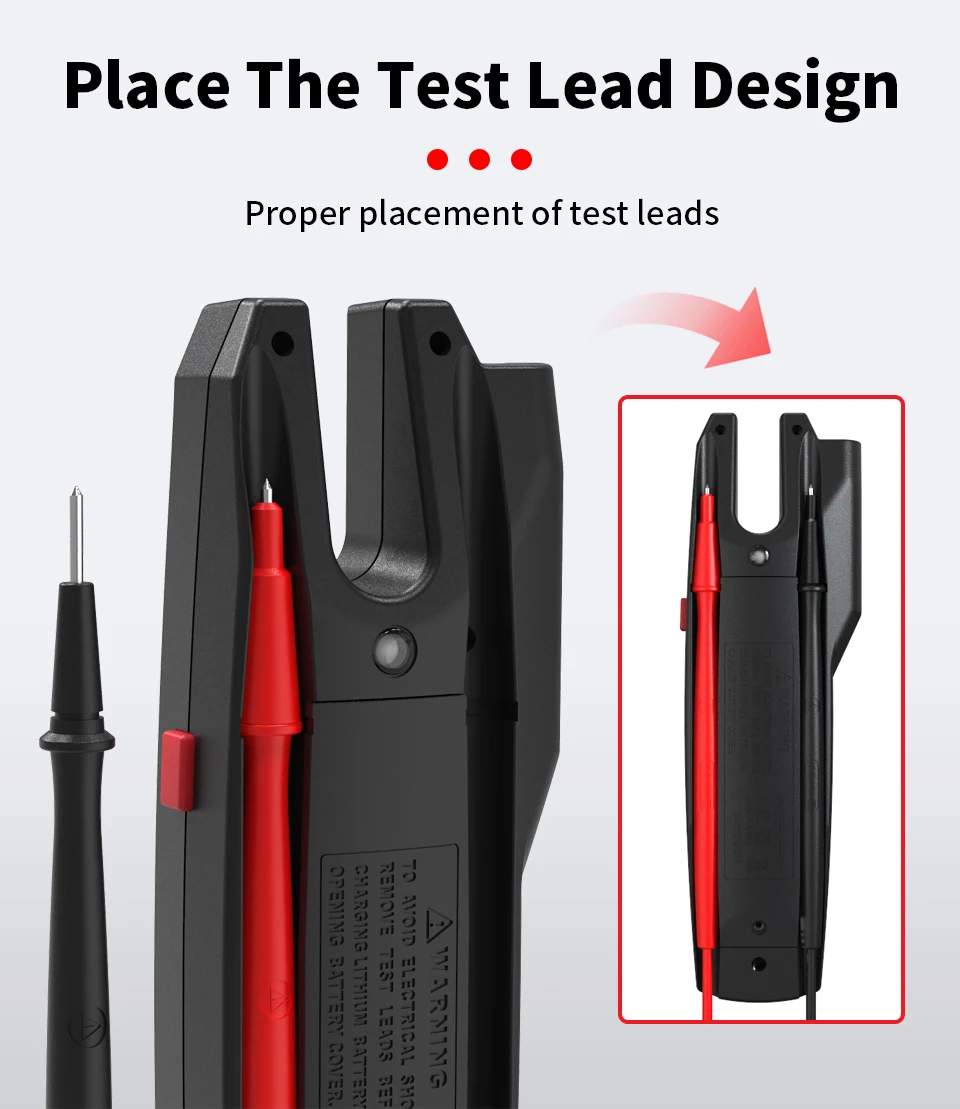

5. The large pen design card is more convenient with the rear side and side of the fuselage

6. Dual battery replacement supply to meet all needs

7. Oversized cloth bag collocation makes the test product safer

8.CAT111 600 high safety gauge to meet the global test maintenance

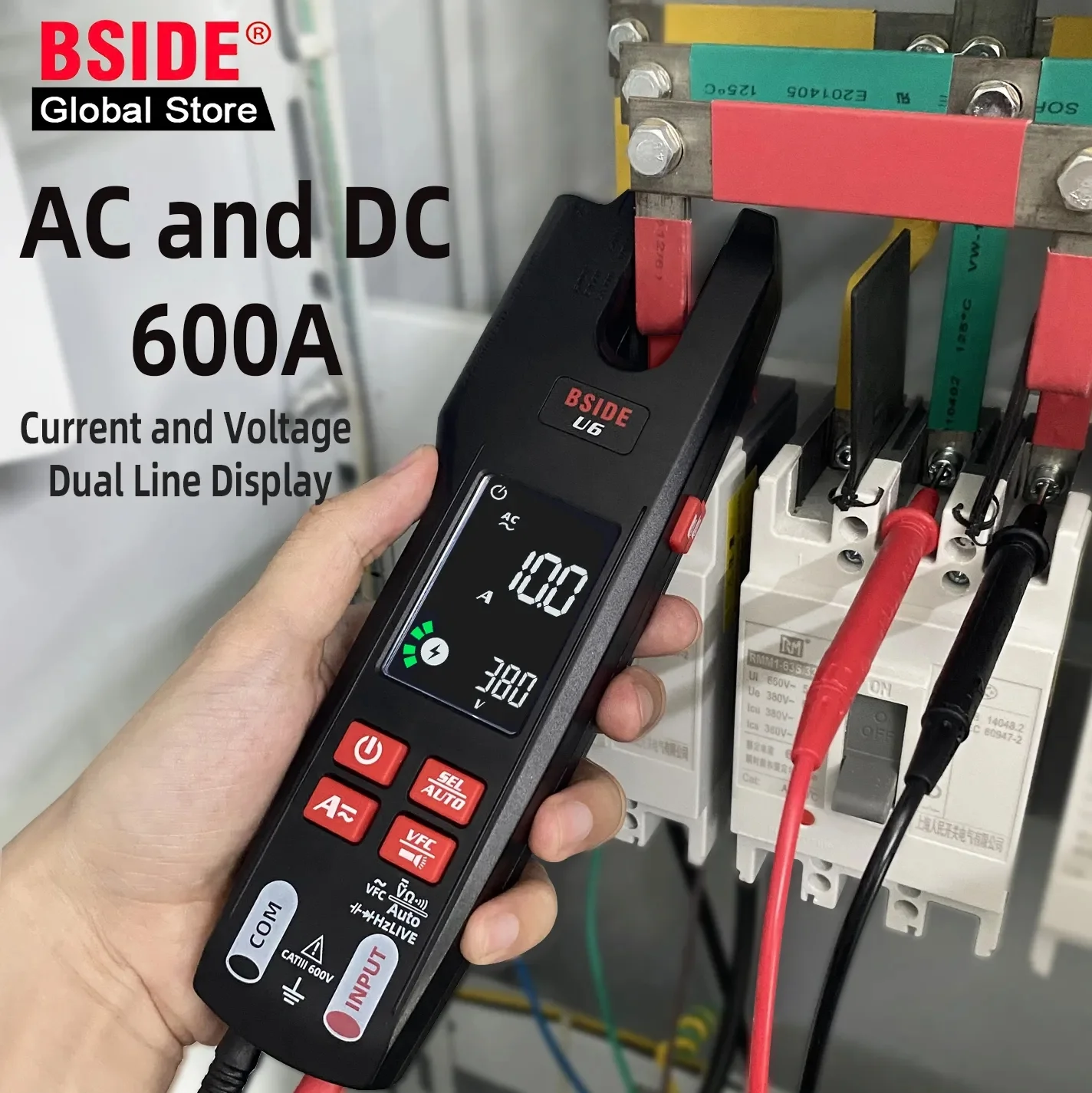

9.MAX AC/DC current 600A Max

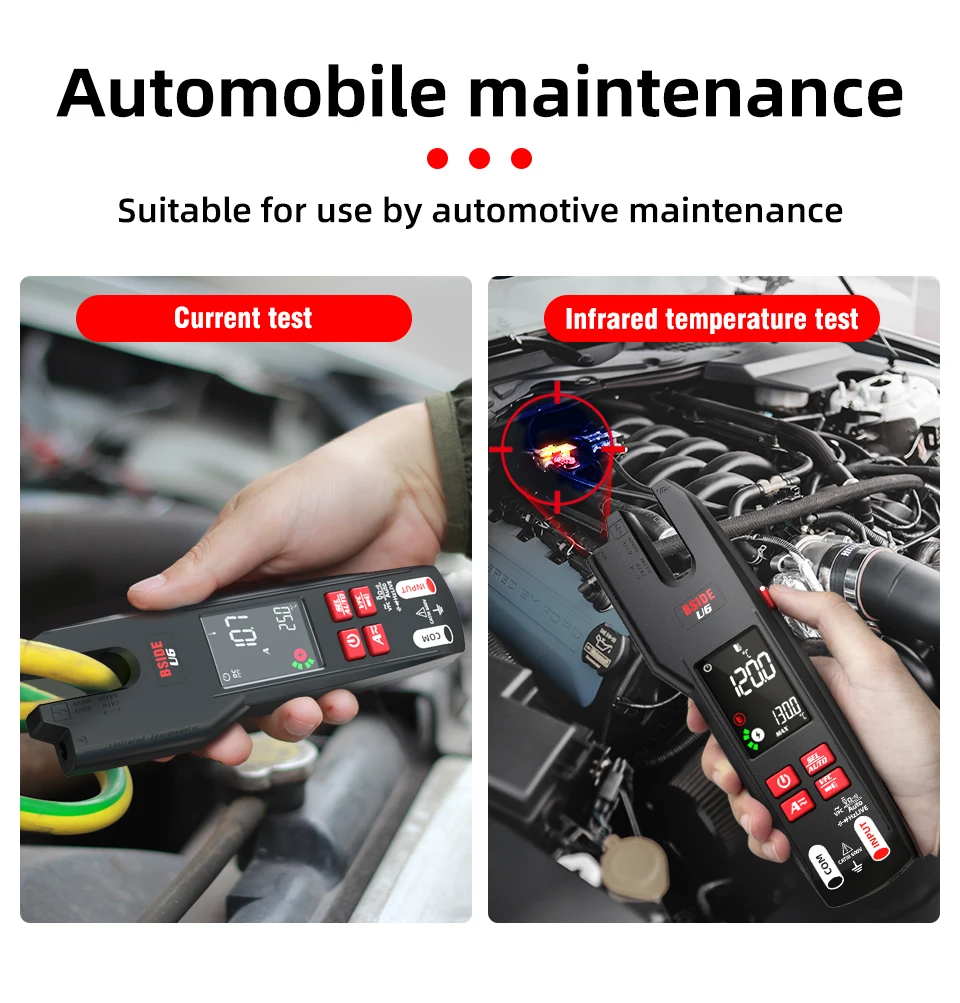

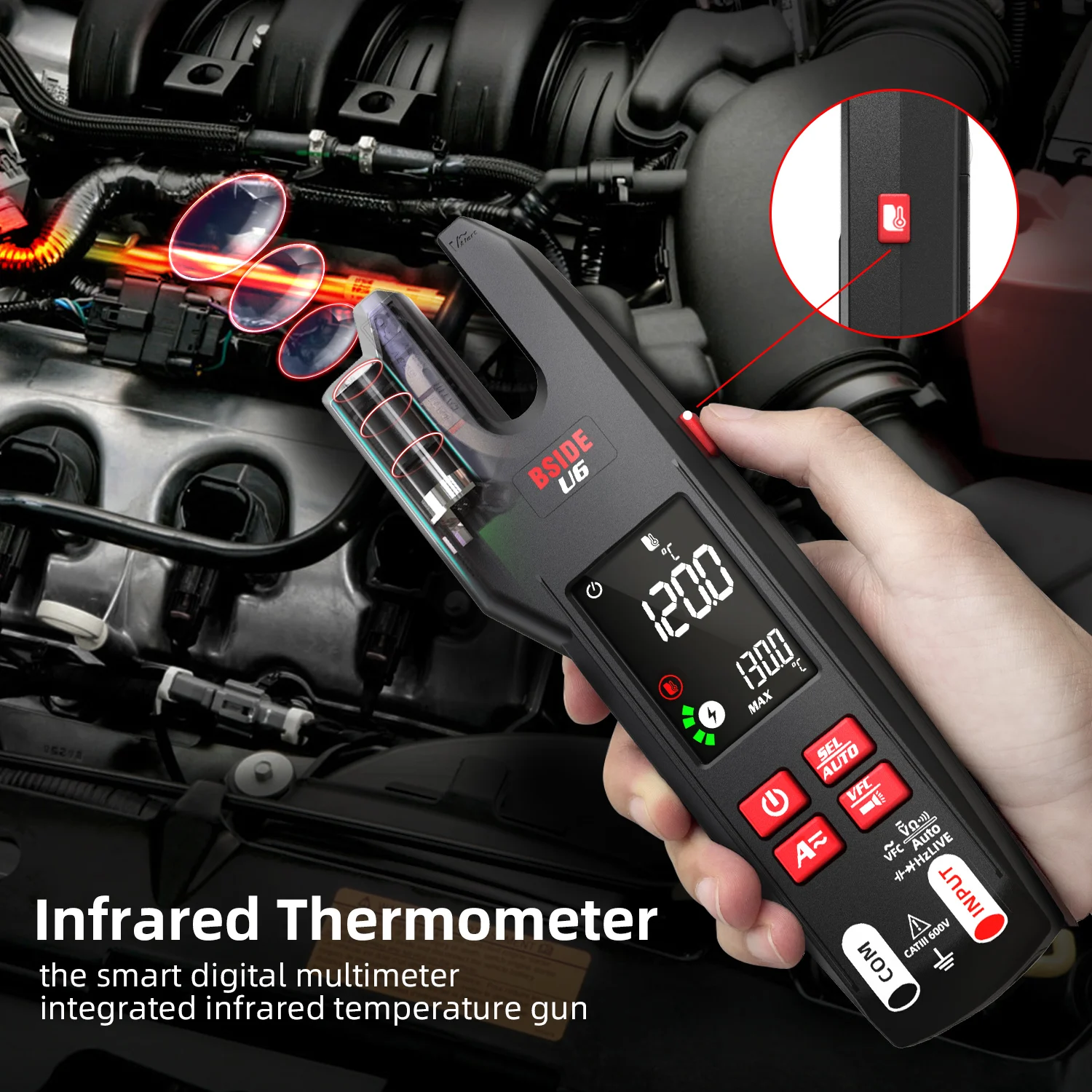

10. The ultimate experience of non-contact infrared temperature measurement

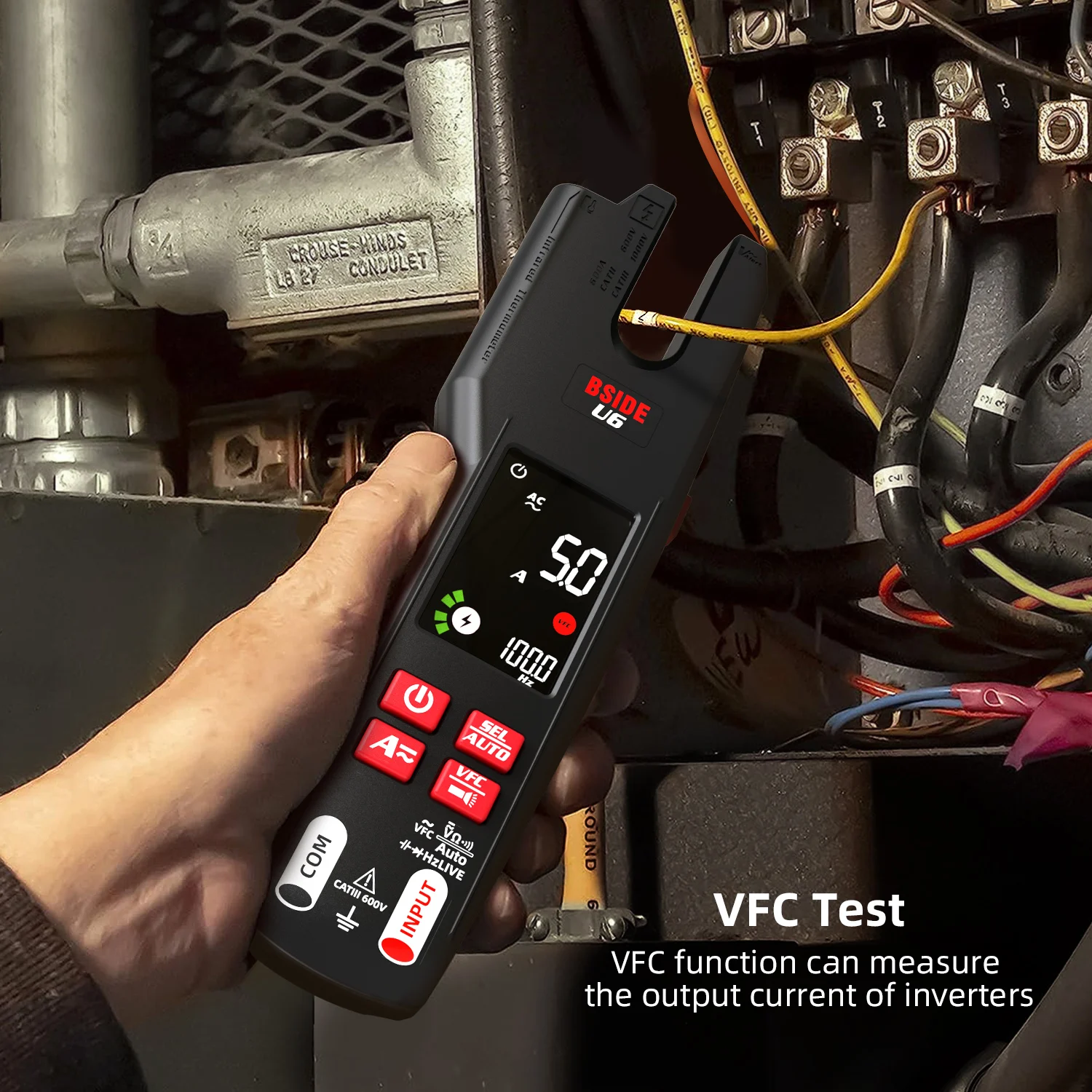

11.VFC frequency conversion voltage test

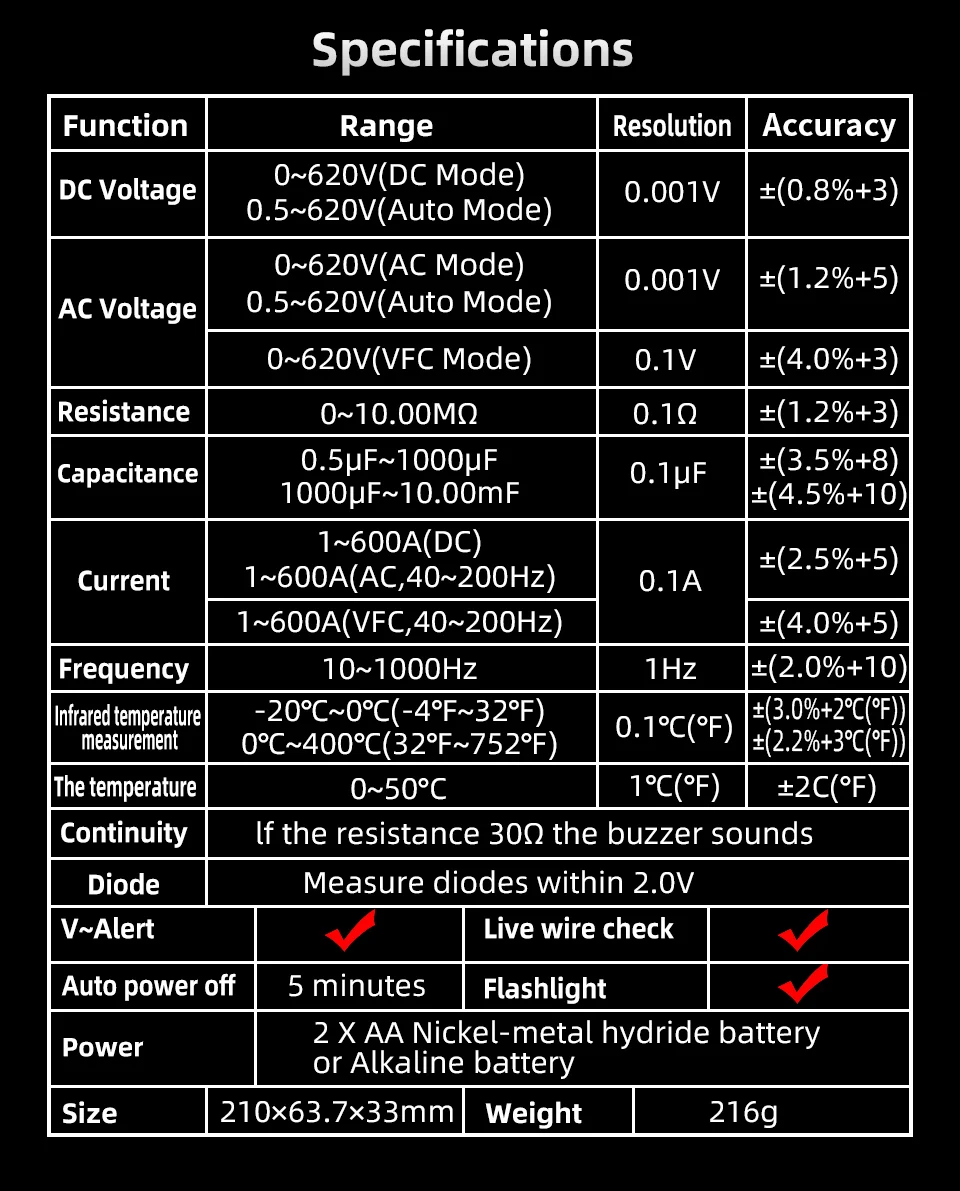

Specifications:

Display: 9999 counts

DC current: 1-600A 0.1A ±(2.5%+5 counts)

AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)

DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)

AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)

Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)

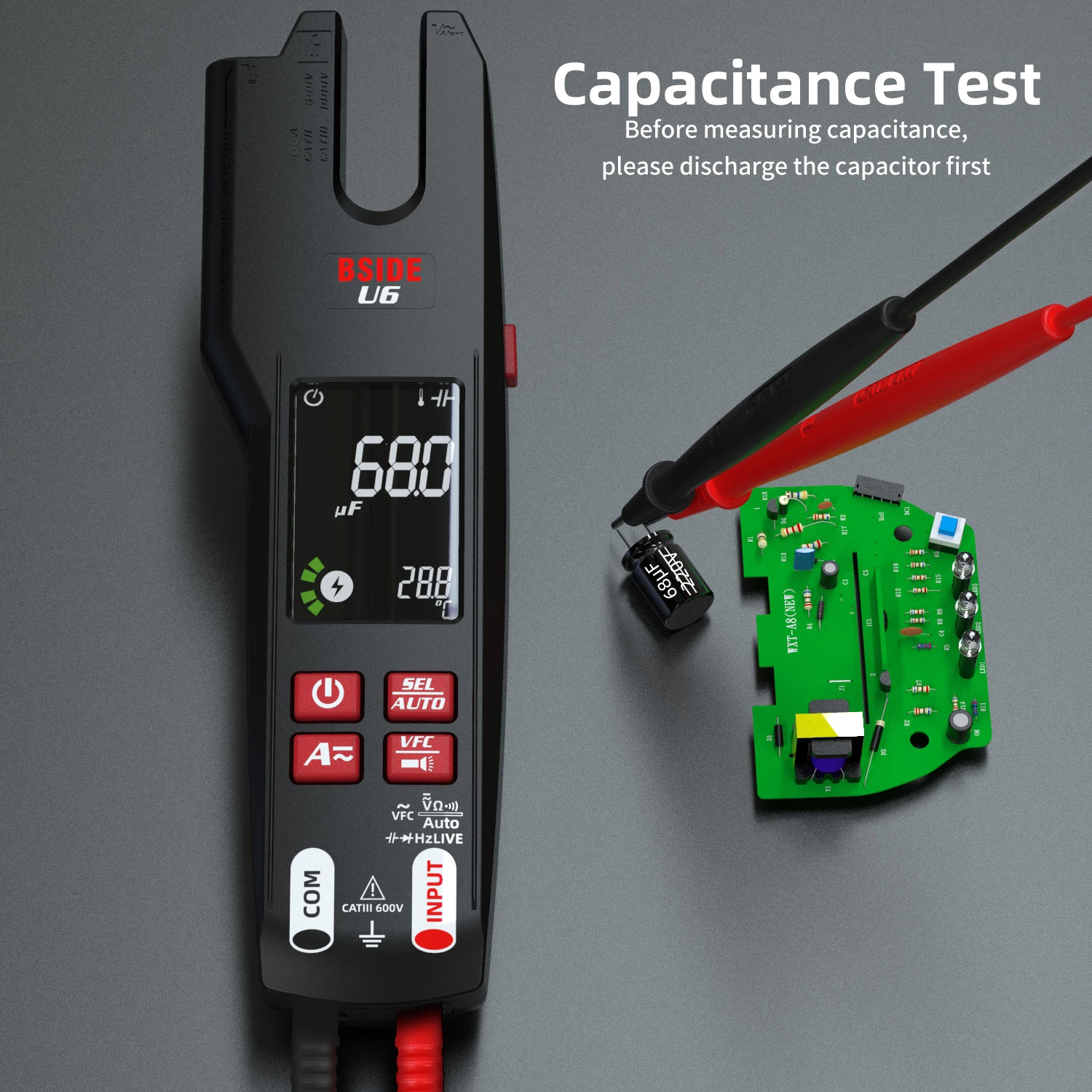

Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)

Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)

Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)

Diode: Measure diodes within 2.0V

Continuity: If the resistance is less than 30Ω, the continuity beeper sounds

Temperature: 0-50℃/32℉-122℉ ±2℃/℉

V-Alert (non contact voltage detection): Yes

Live wire check: Yes

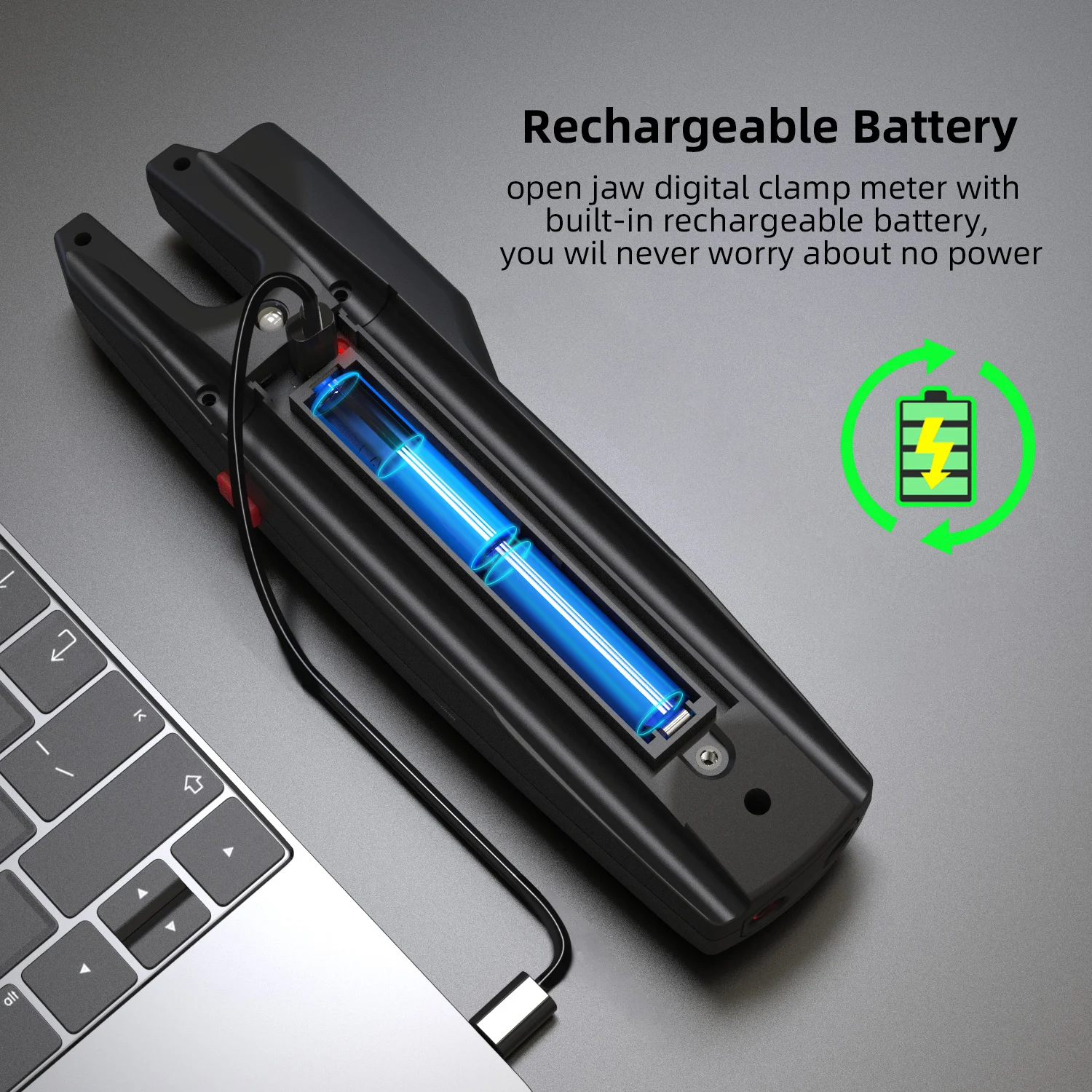

Power: rechargeable 1.5 V (AA) x 2 (built-in)

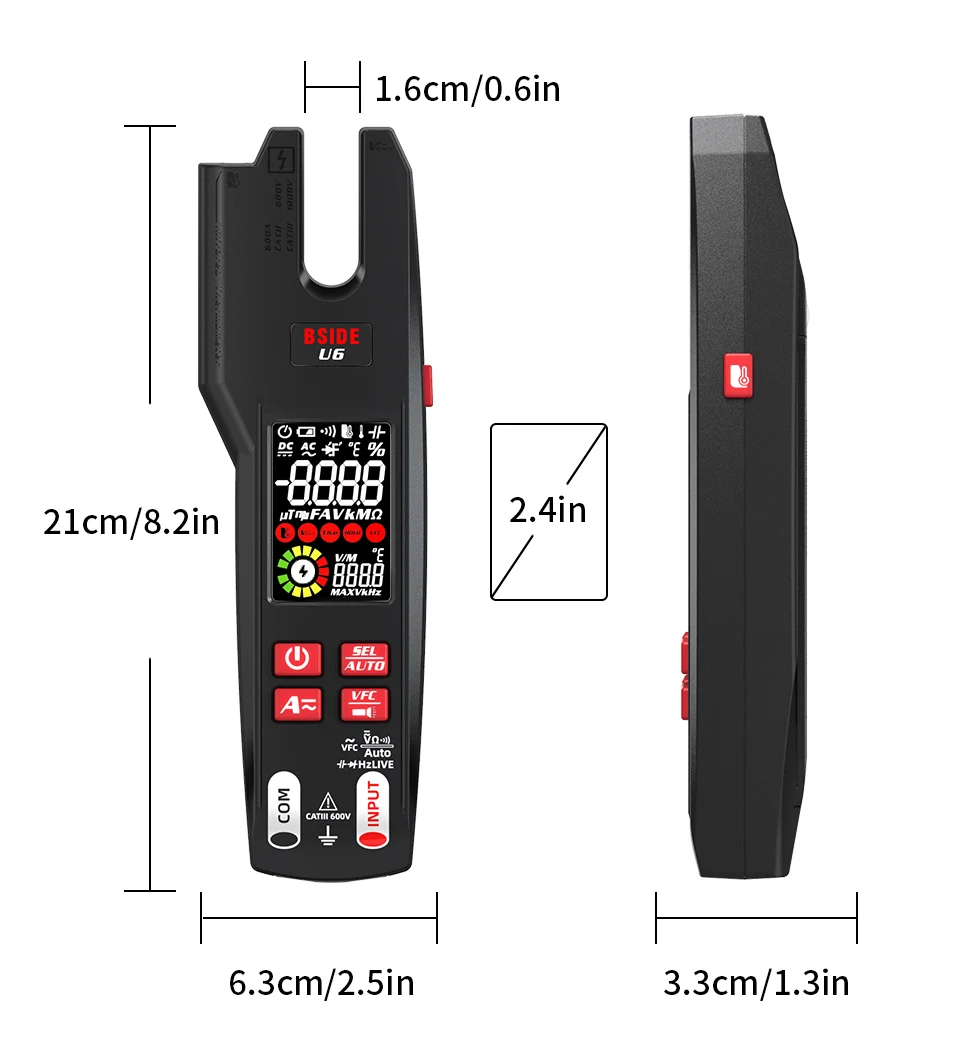

Size: 210 x 63.7 x 33 mm

Weight: 216 g

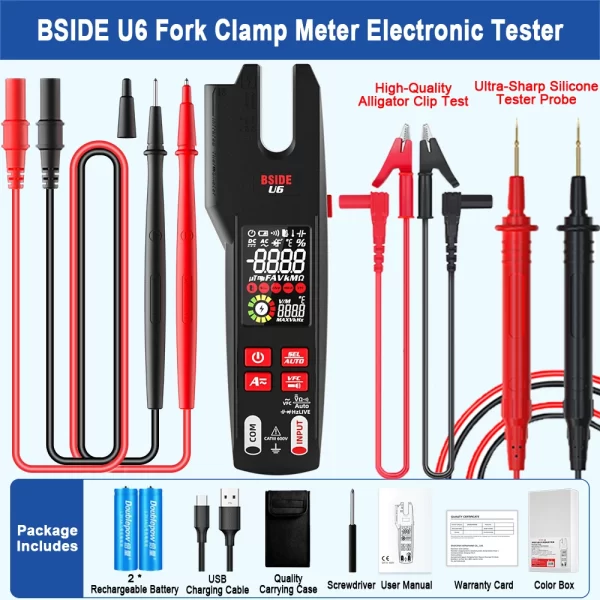

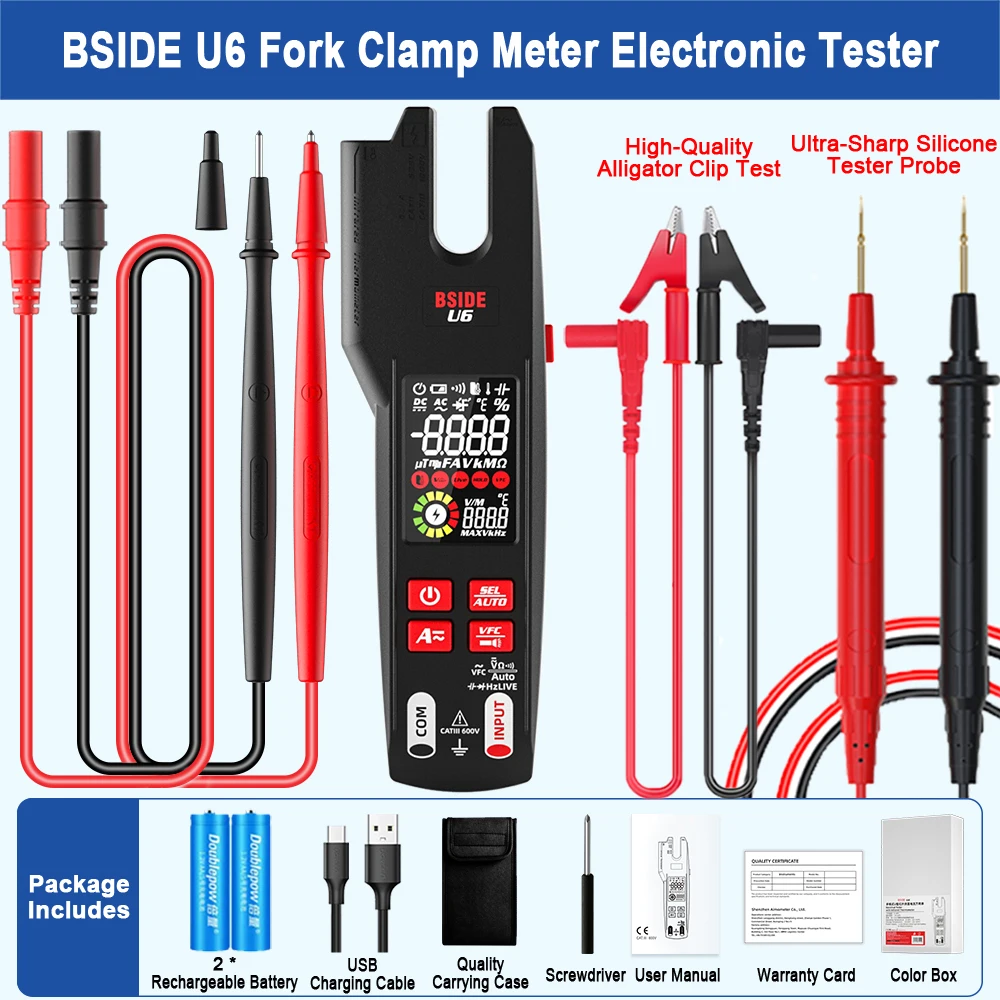

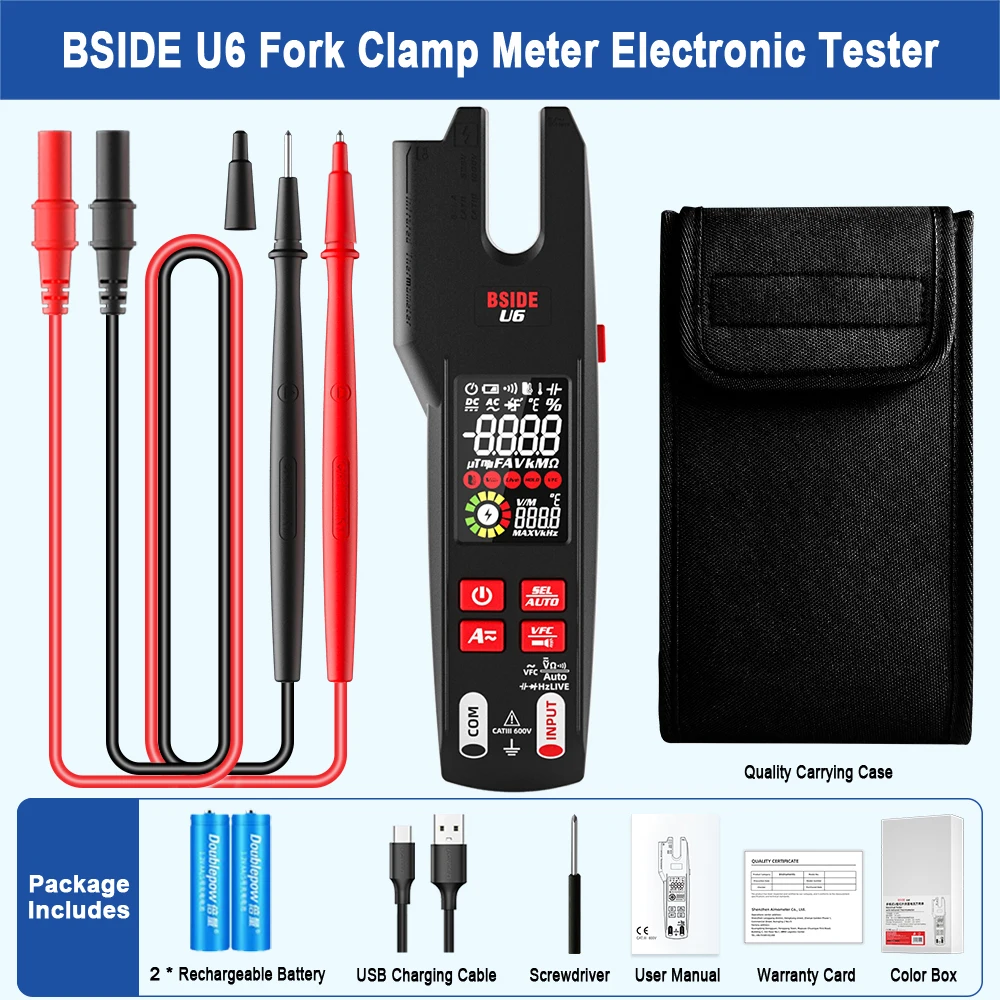

Package Includes:

1 x Digital Clamp Meter

1 x Test Leads

1 x Charging Cable

1 x Carrying Case

1 x Screwdriver

1 x User Manual
