SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

Choice: yes

Communication Interface: OBD-II

High-concerned chemical: None

Item Type: Code Readers & Scan Tools

Origin: Mainland China

Features:

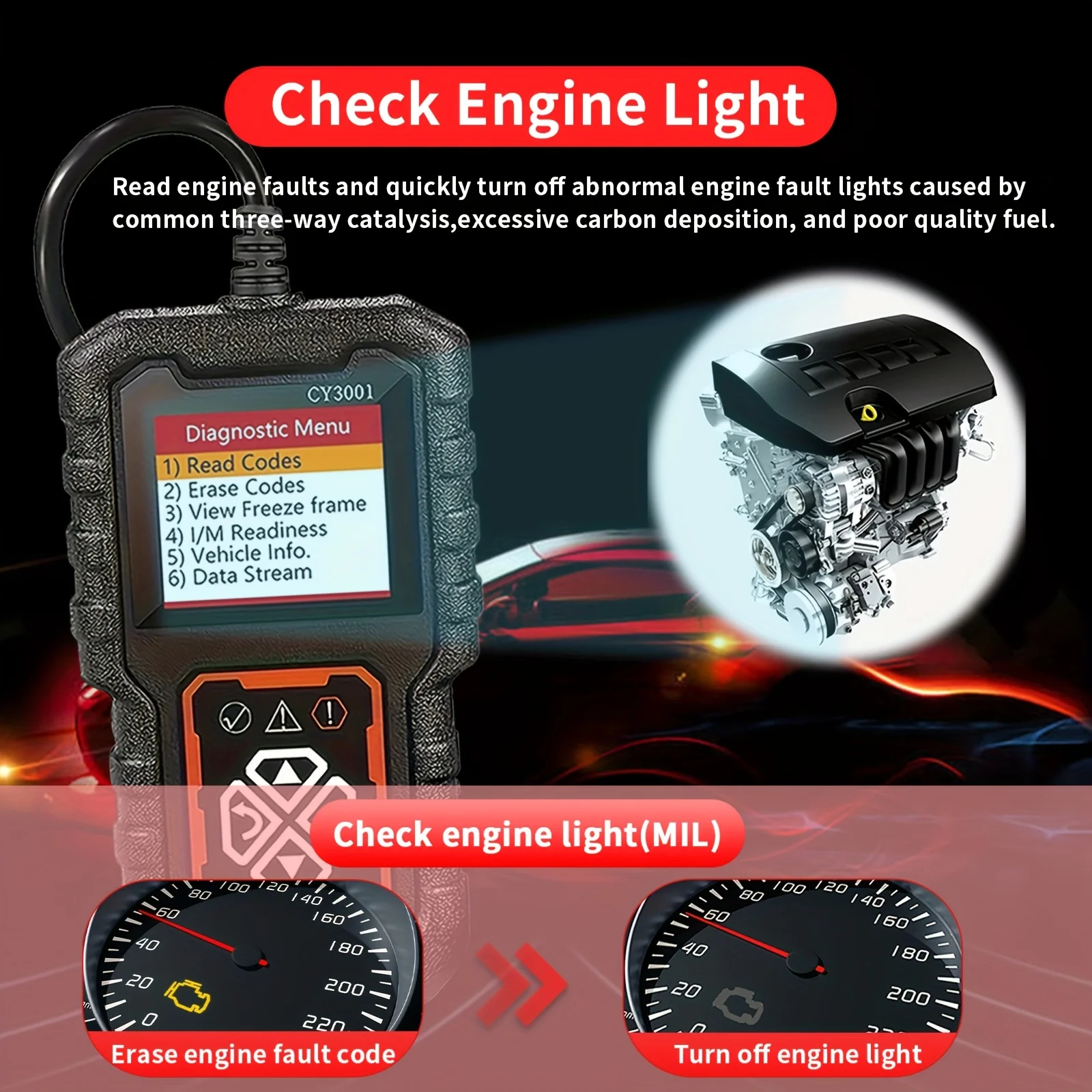

1. Quick detection: Quickly read vehicle fault codes to save diagnostic time.

2. Real time data monitoring: Real time display of vehicle operation data to help users understand vehicle status.

3. High precision: Provide accurate measurements and analysis to ensure the reliability of diagnostic results.

4. Strong compatibility: Suitable for various vehicle models and series, with wide applicability.

5. Easy to operate: user-friendly, easy to operate, and easy to get started.

Specification:

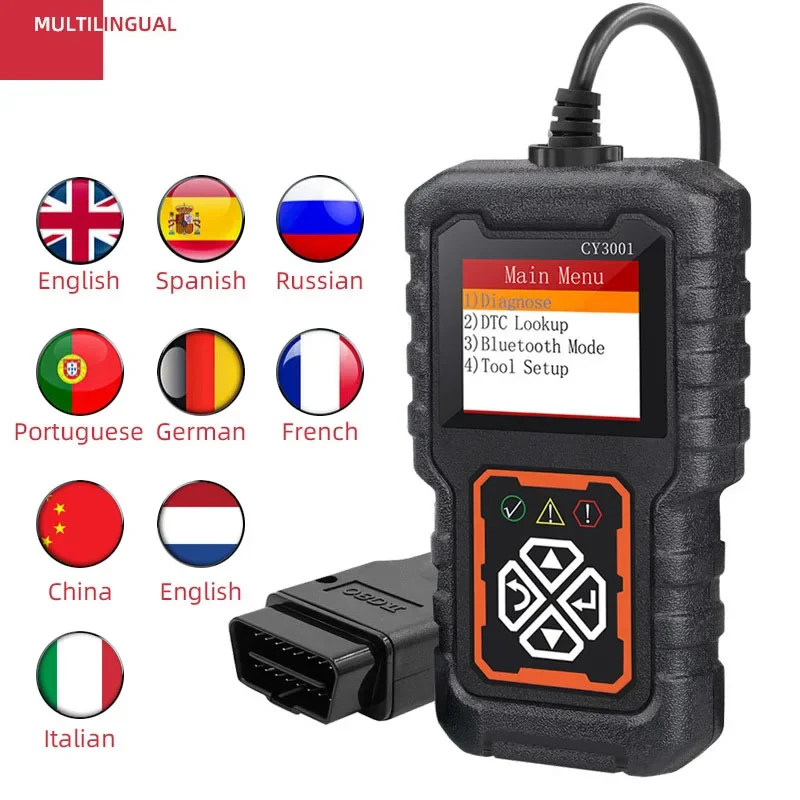

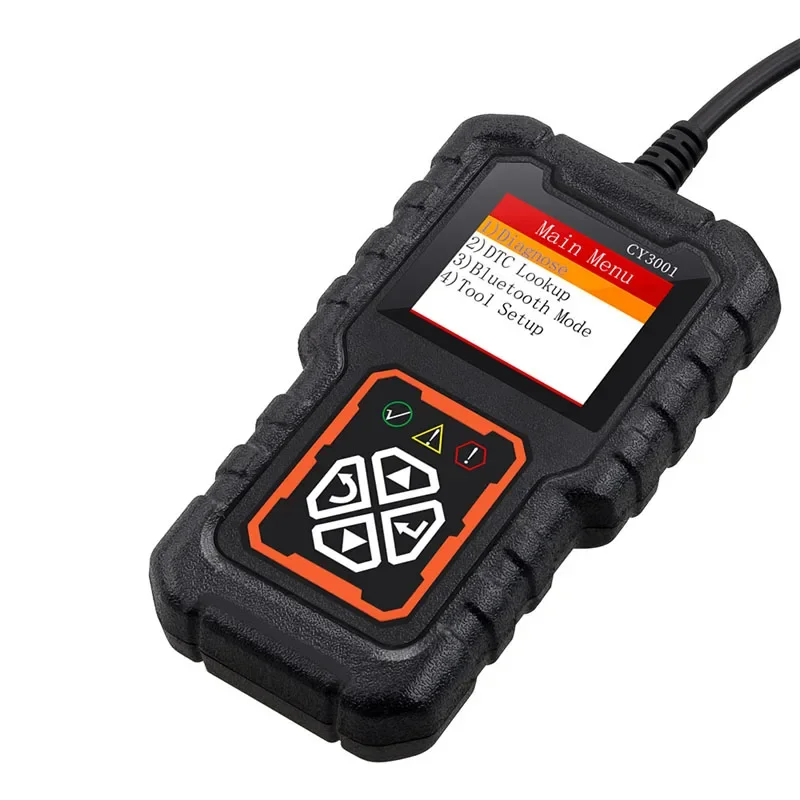

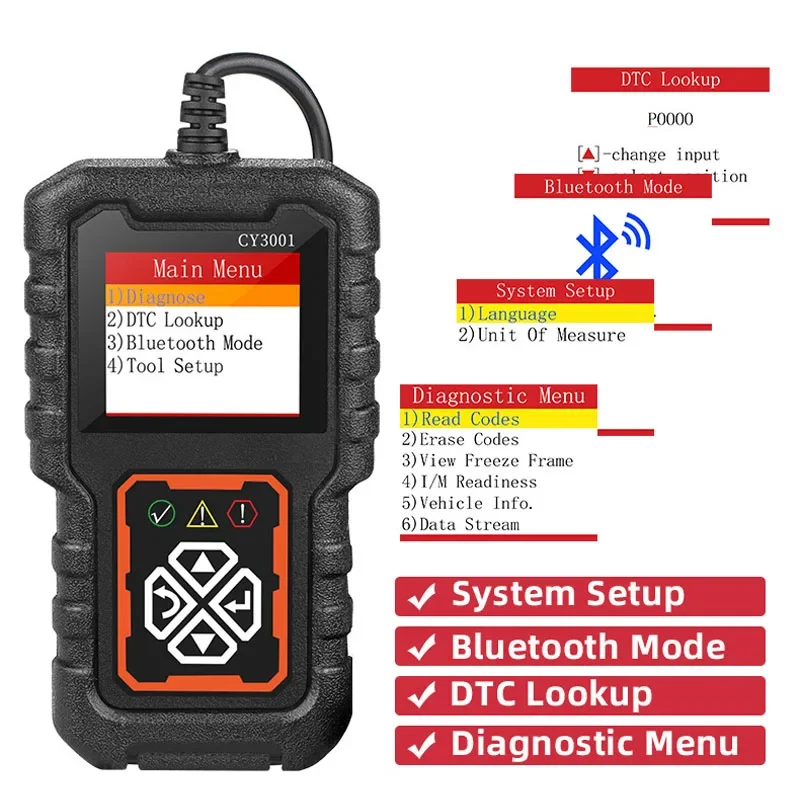

Product Name: CY3001 Automotive Tester

Working status: Three color indicator light

Product size: 70mm * 120mm * 23mm

Connection method: OBDII dedicated cable/Bluetooth connection

Working temperature: -40 ℃ to 65 ℃ C

Voltage: DC9-16V

Weight with packaging: 170g

Communication protocol：

1.SAEJ1850 PWM (41.6 Kbaud)

2.SAE J1850 VPW (10.4 Kbaud)

3.1s09141-2 (5 baud init,10.4 kbaud)

4.1S014230-4 KWP(5 baud init,10.4 Kbaud)

5.1S014230-4 KWP (fast init,10.4 Kbaud)

6.IS015765-4 CAN (1bit lD,500 Kbaud)

7.IS015765-4 CAN (29bit lD,500 Kbaud)

8.IS015765-4 CAN(11bit lD250 Kbaud)

9.1S015765-4 CAN (29bit ID,250 Kbaud)

Packing: boxed

Package included:

1 x instruction manual

1 x detector

Notice:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
