SPECIFICATIONS
AC Current: 200uA-10A
AC Voltage: 200mV-750V
ANENG Model: sz305
Battery Included: No
Brand Name: ANENG
Certification: CE
Choice: yes
DC Current: 200uA-10A
DC Voltage: 200mV-1000V
DIY Supplies: Electrical

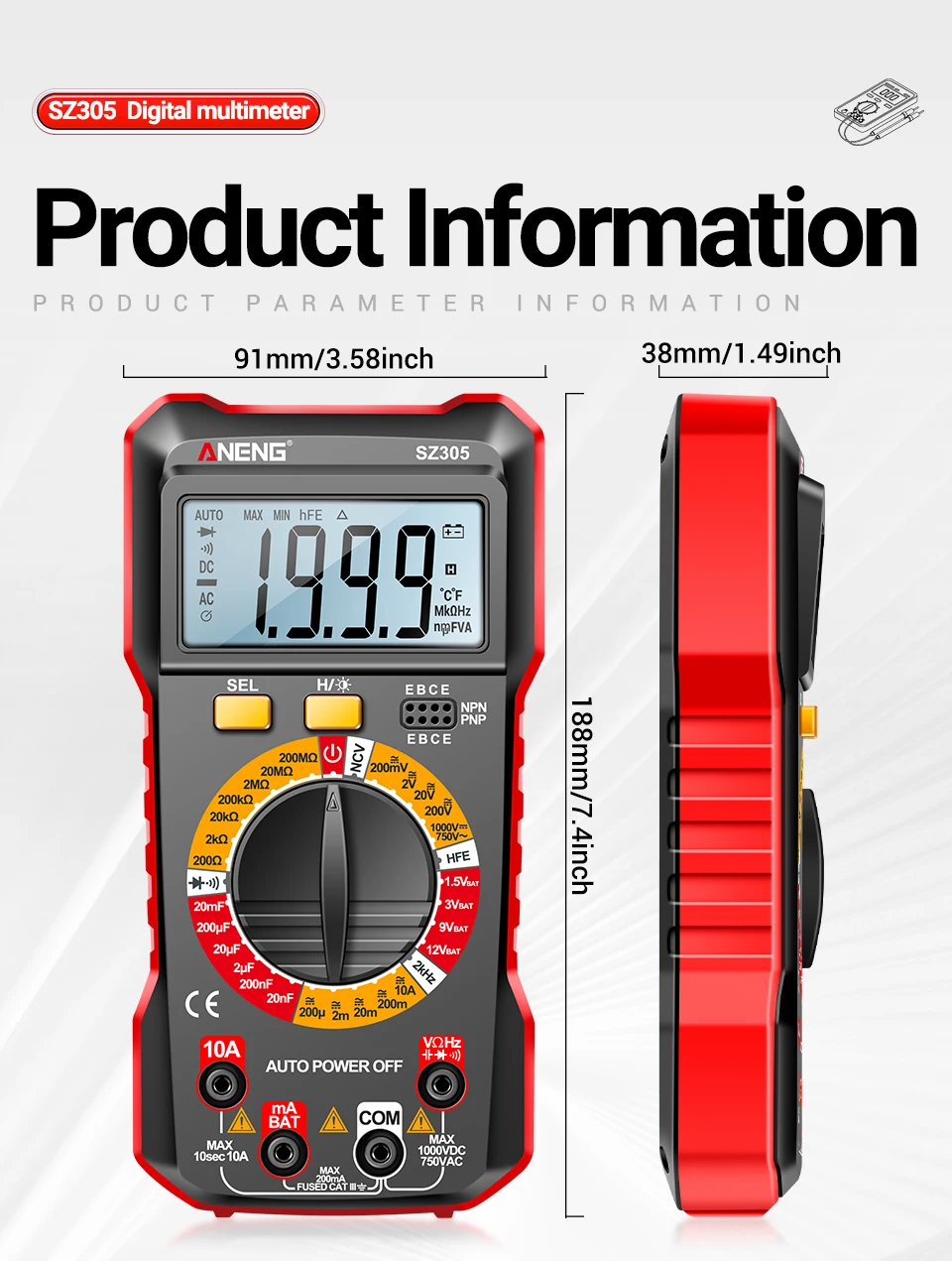

Dimensions: 188x91x38 mm
Display Type: Digital Display
Hign-concerned Chemical: None
Measuring Capacitance Range: 20mF
Measuring Inductance Range: ANENG Digital Multimeter
Measuring Resistance Range: 200 MOhm

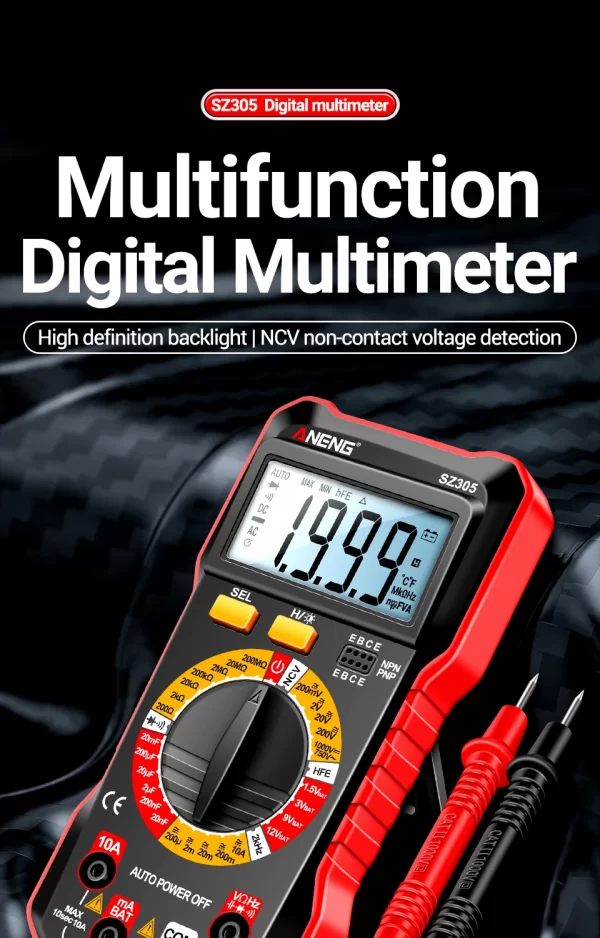

Model Number: ANENG SZ305 Multimeter
Operating Mode: Manual range
Operating Temperature: 0 – 40 ℃
Origin: Mainland China

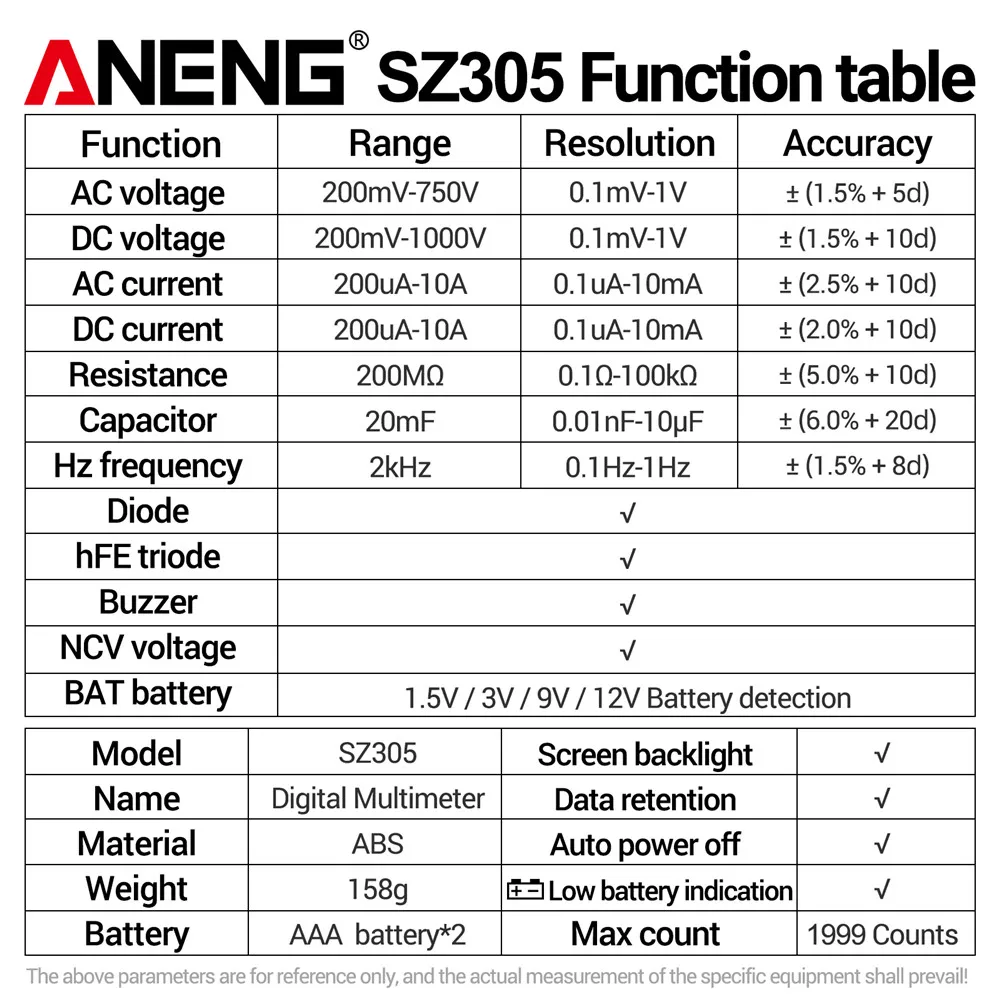

Describe :
|

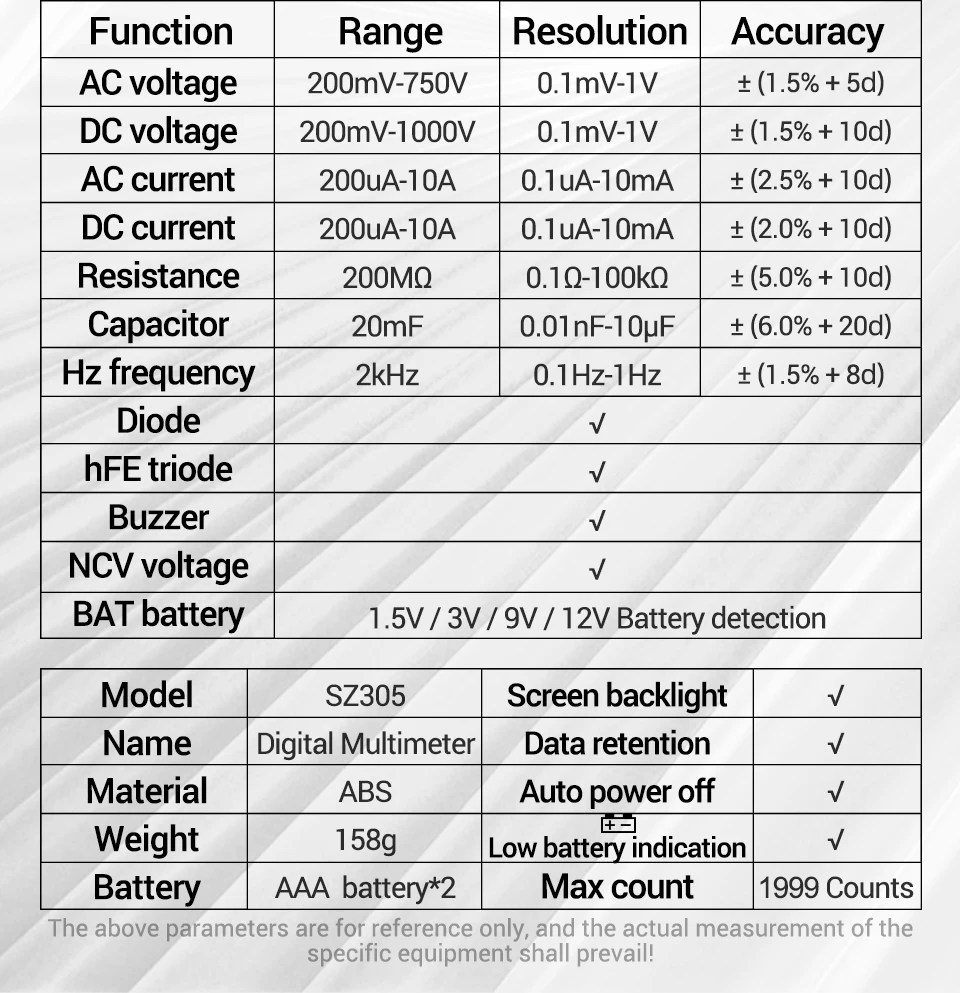

Function |
Range |
Resolution |
Accuracy |
|

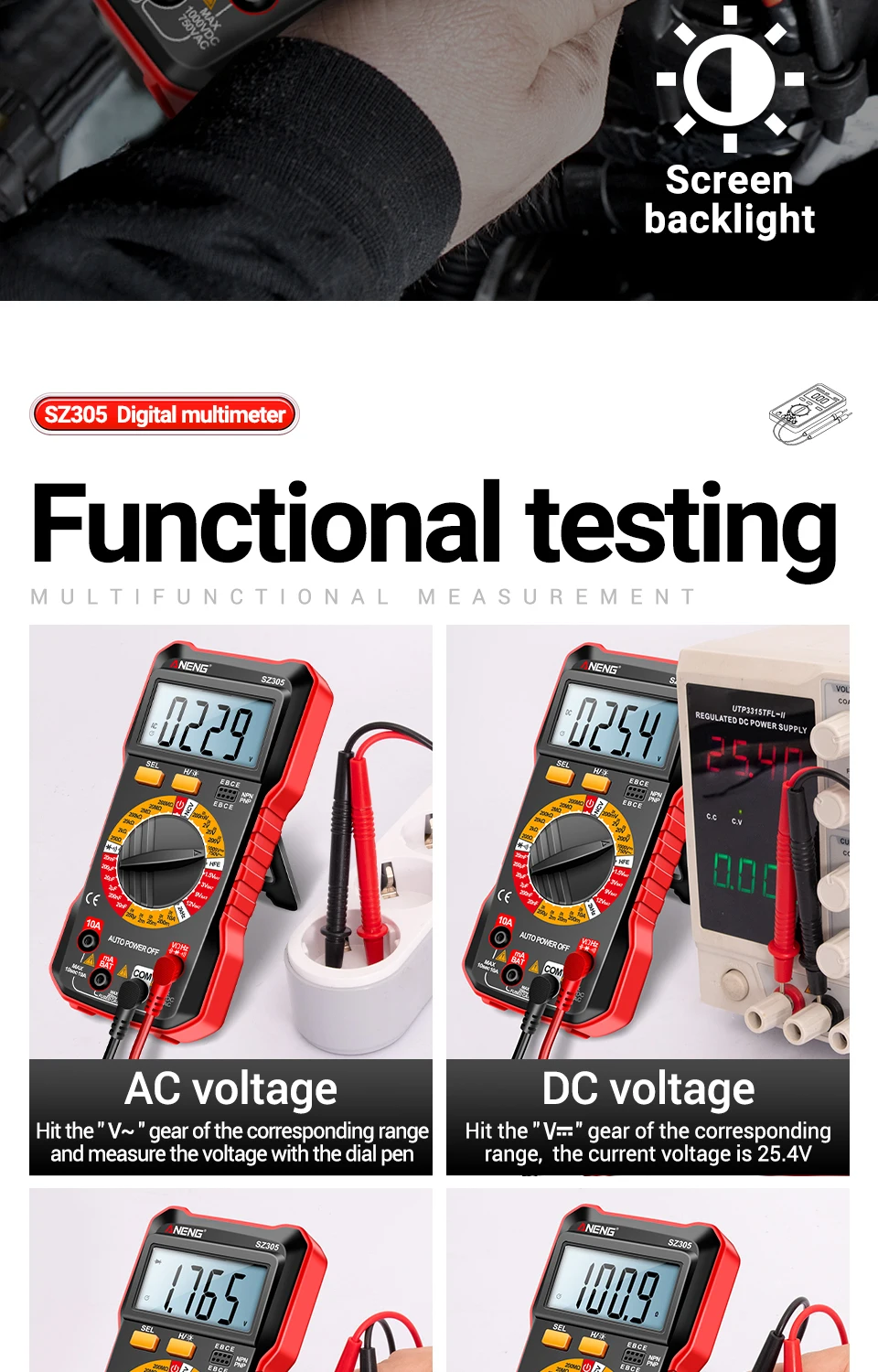

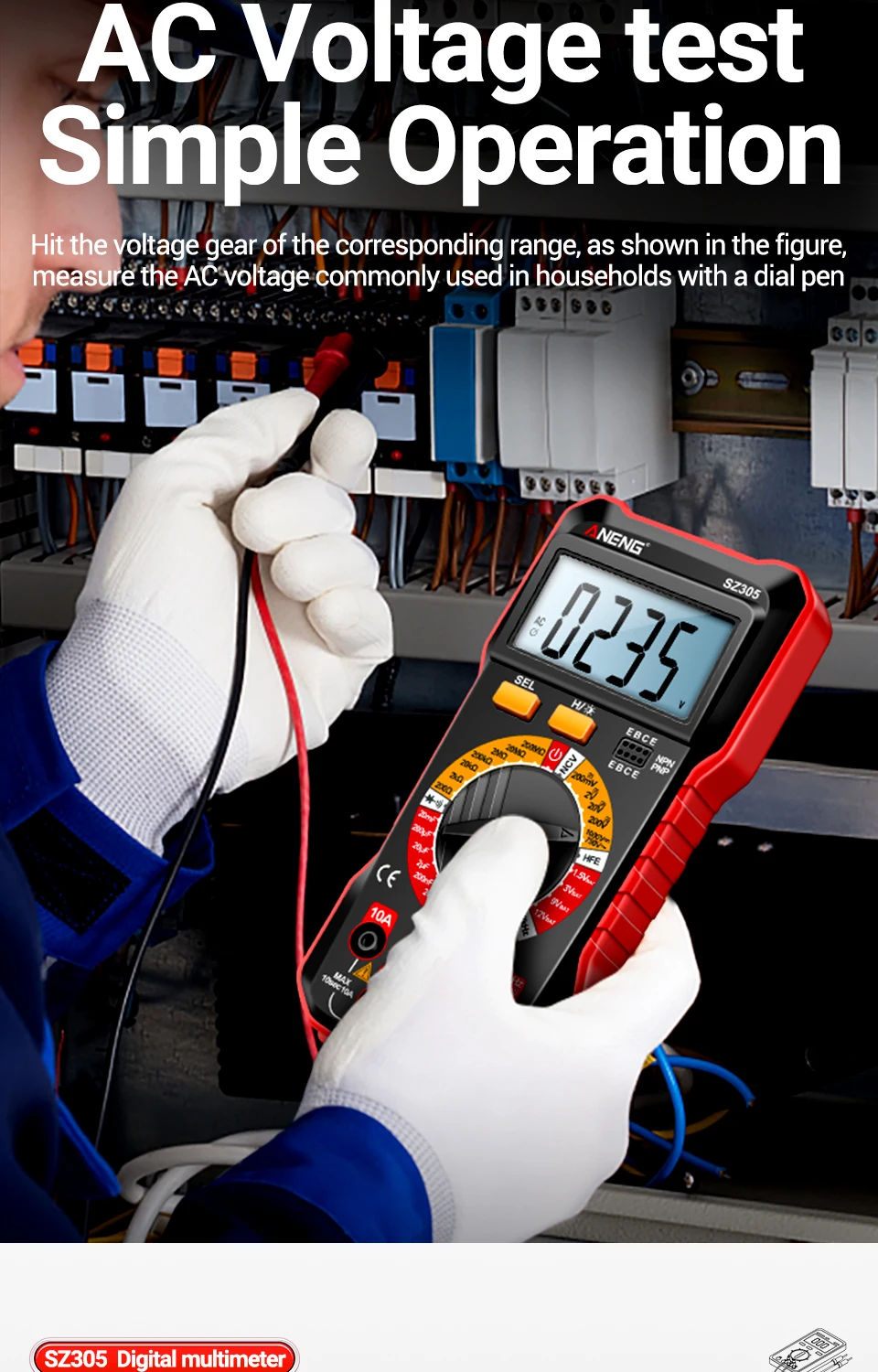

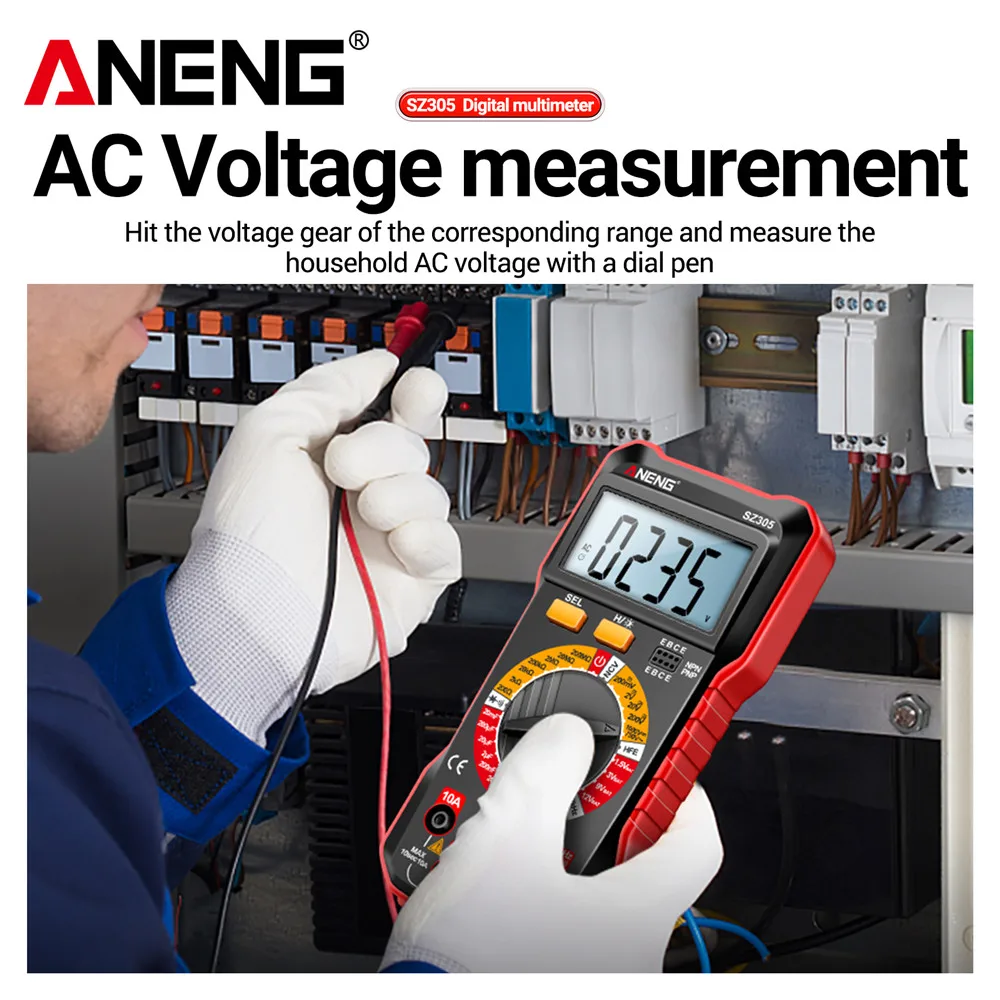

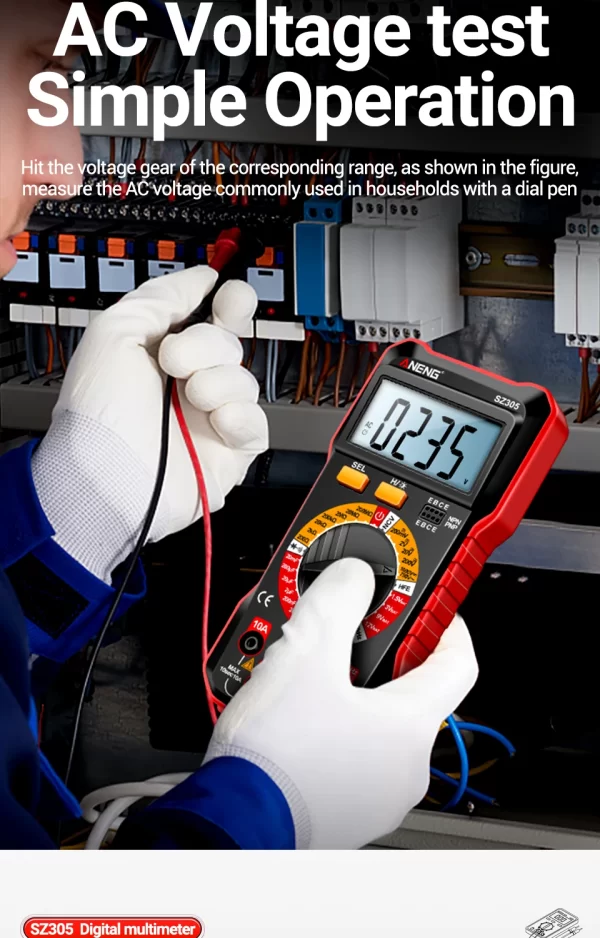

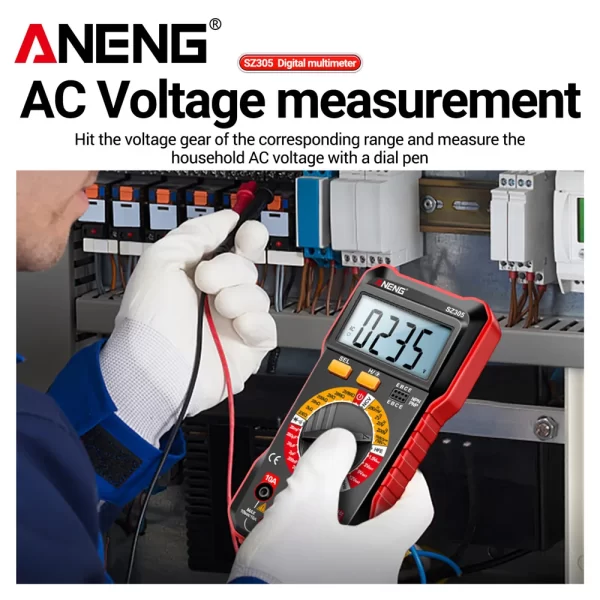

AC voltage |
200mV-750V |
0.1mV-1V |
±(1.5%+5d) |
|
DC voltage |
200mV-1000V |
0.1mV-1V |
±(1.5%+10d) |
|

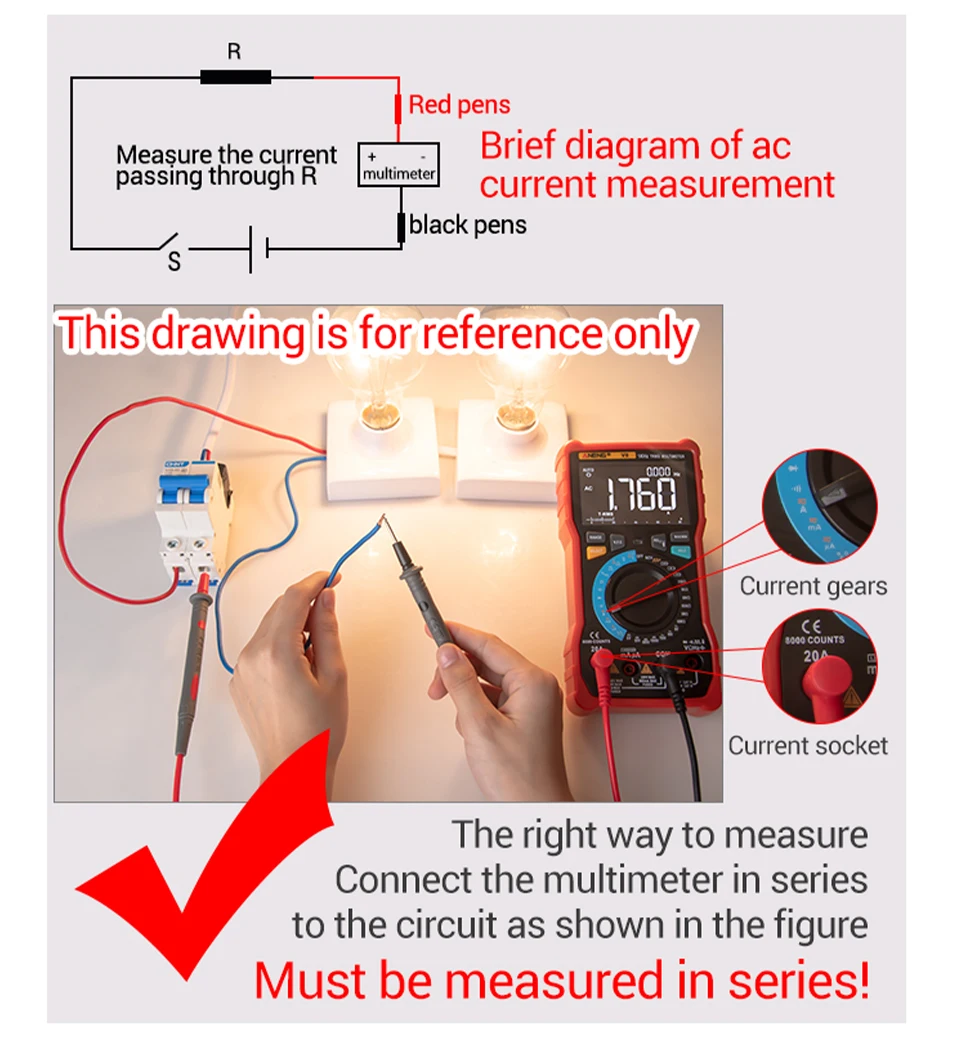

AC current |
200uA-10A |
0.1uA-10mA |
±(2.5%+10d) |
|

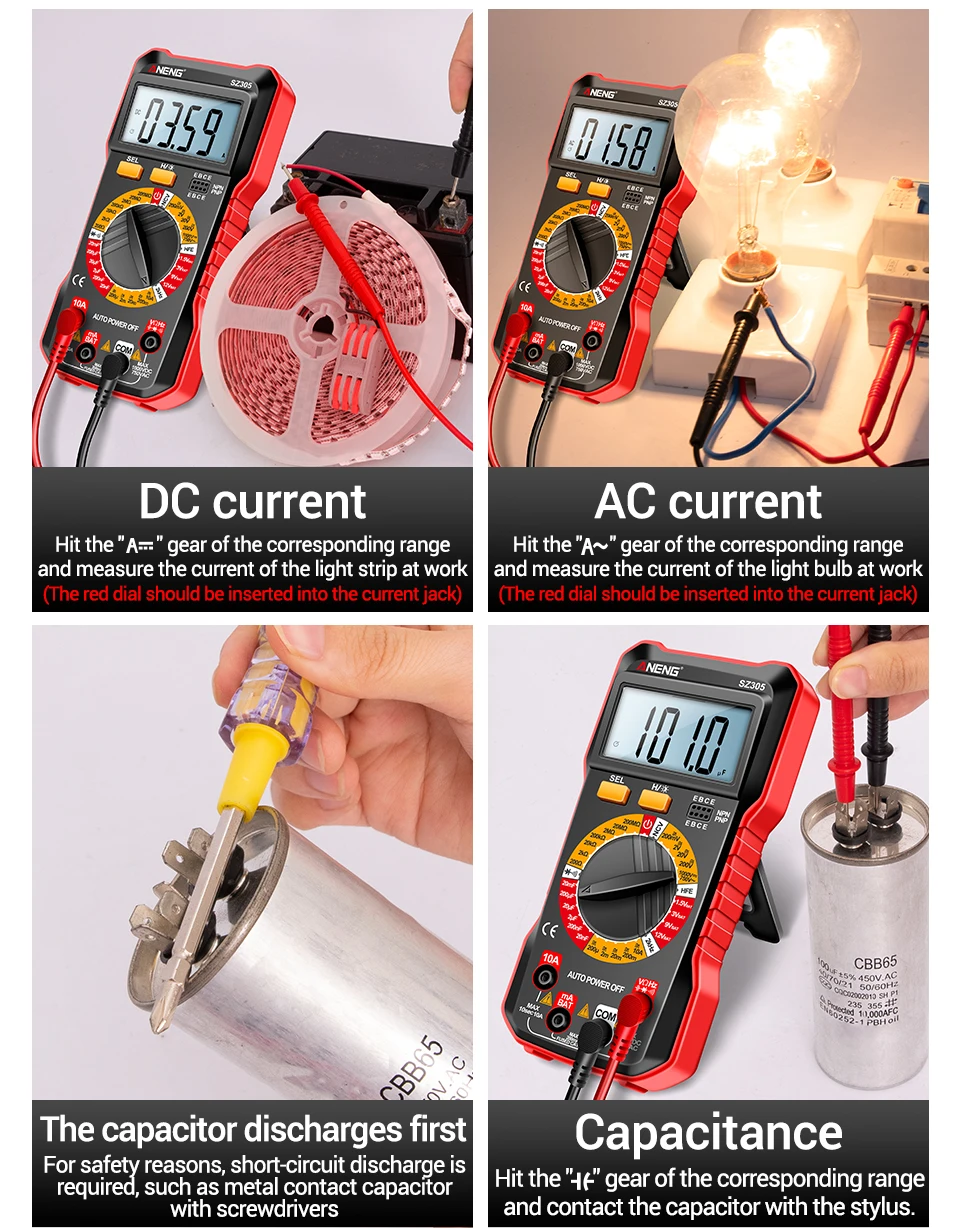

DC current |
200uA-10A |
0.1uA-10mA |
±(2.0%+10d) |
|
Resistance |
200MΩ |
0.1Ω-100kΩ |
±(5.0%+ 10d) |
|
Capacitor |
20mF |
0.01nF-10uF |
±(6.0%+ 20d) |
|
Hz frequency |
2kHz |
0.1Hz-1Hz |
±(1.5%+8d) |
|
Specification |
188x91x38 mm |

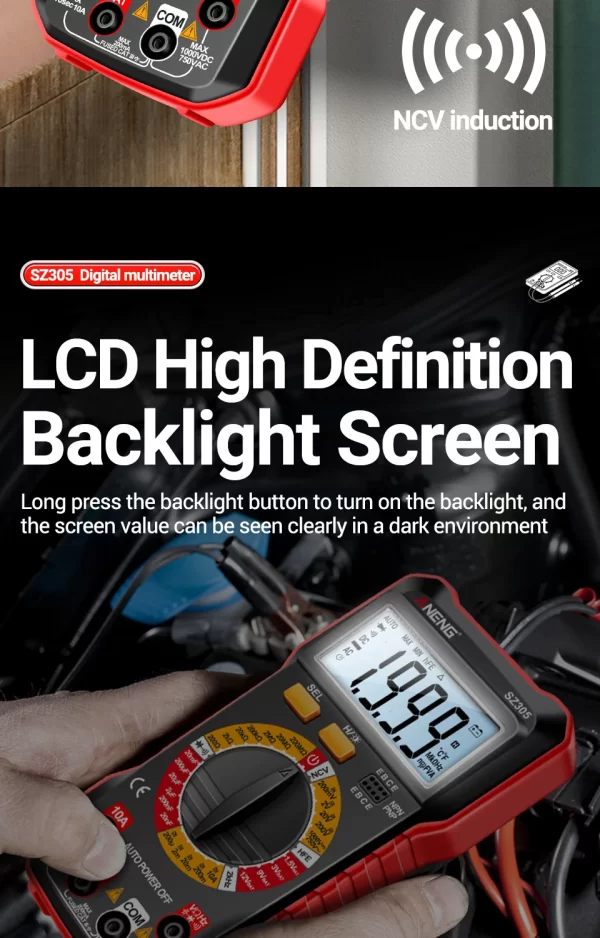

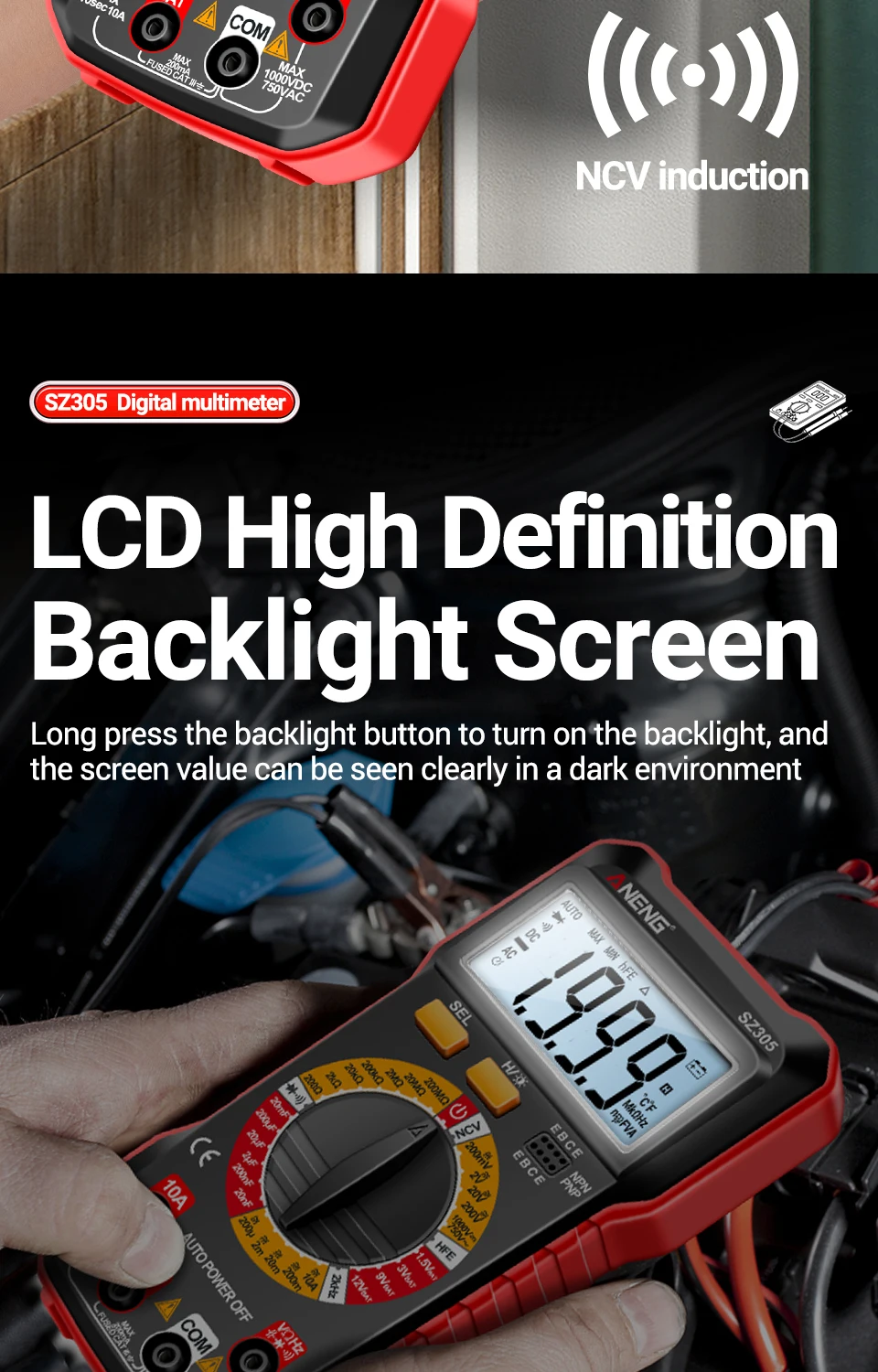

Screen backlight |
√ |
|
Name |

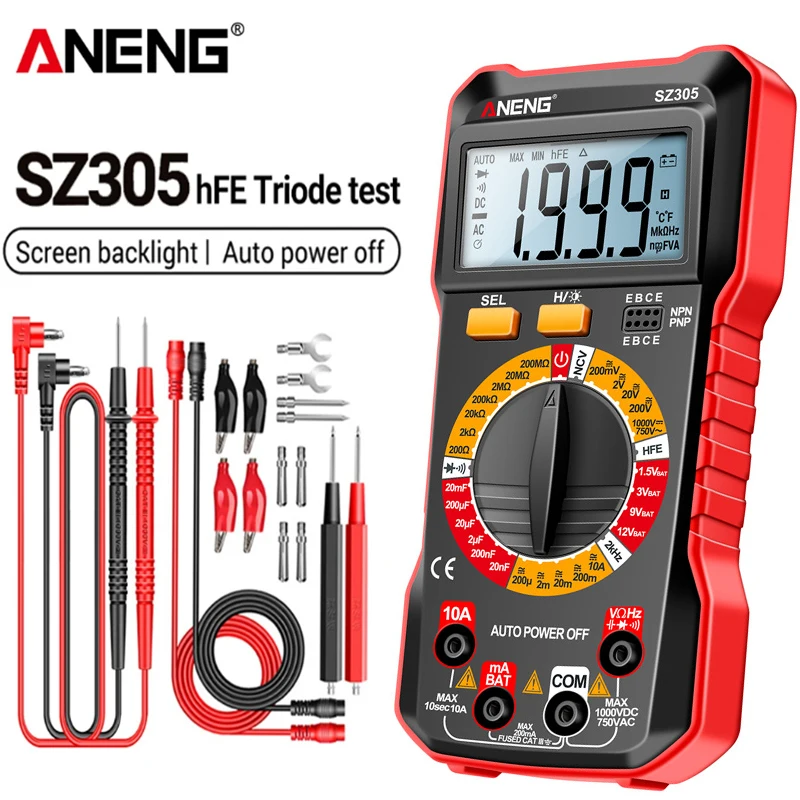

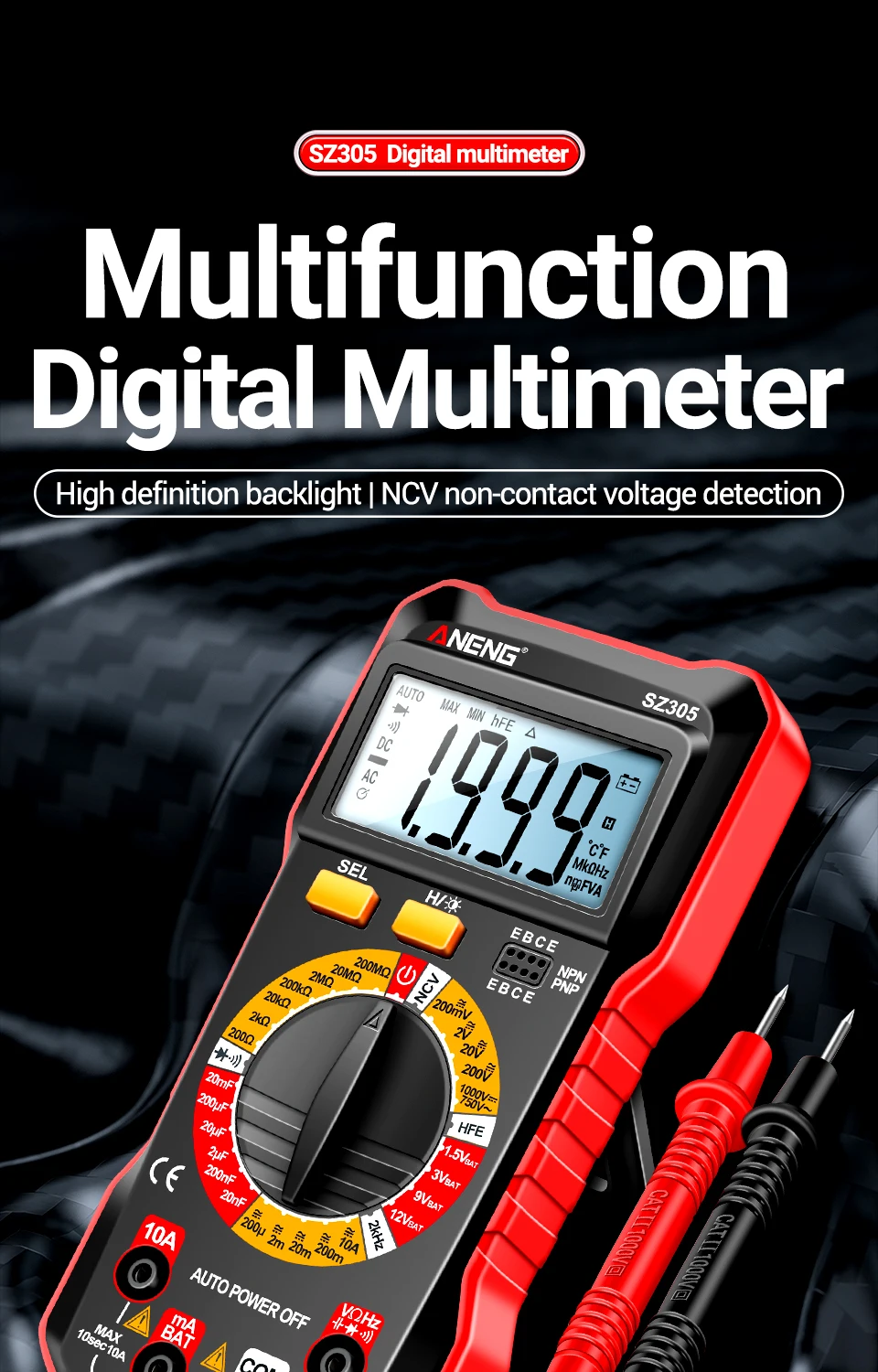

Digital Multimeter |
Data retention |
√ |
|
Material |
ABS |
Auto power off |
√ |
|
Weight |
158g |
Low battery indication |
√ |
|
Battery |
AAA battery*2 |
Max count |
1999 Counts |
|

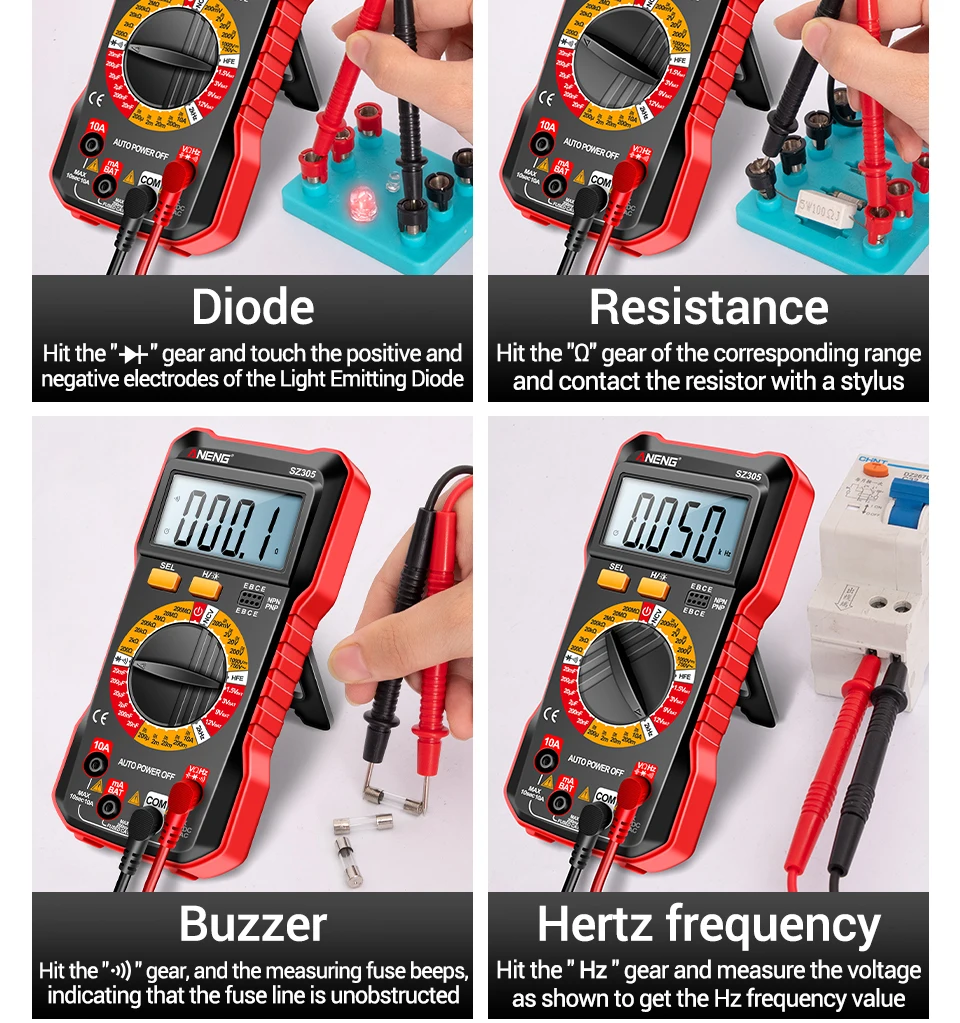

Diode |
√ |
||
|

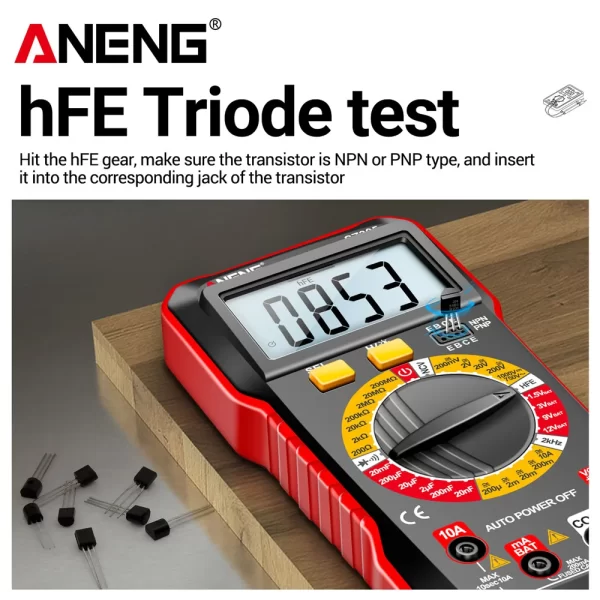

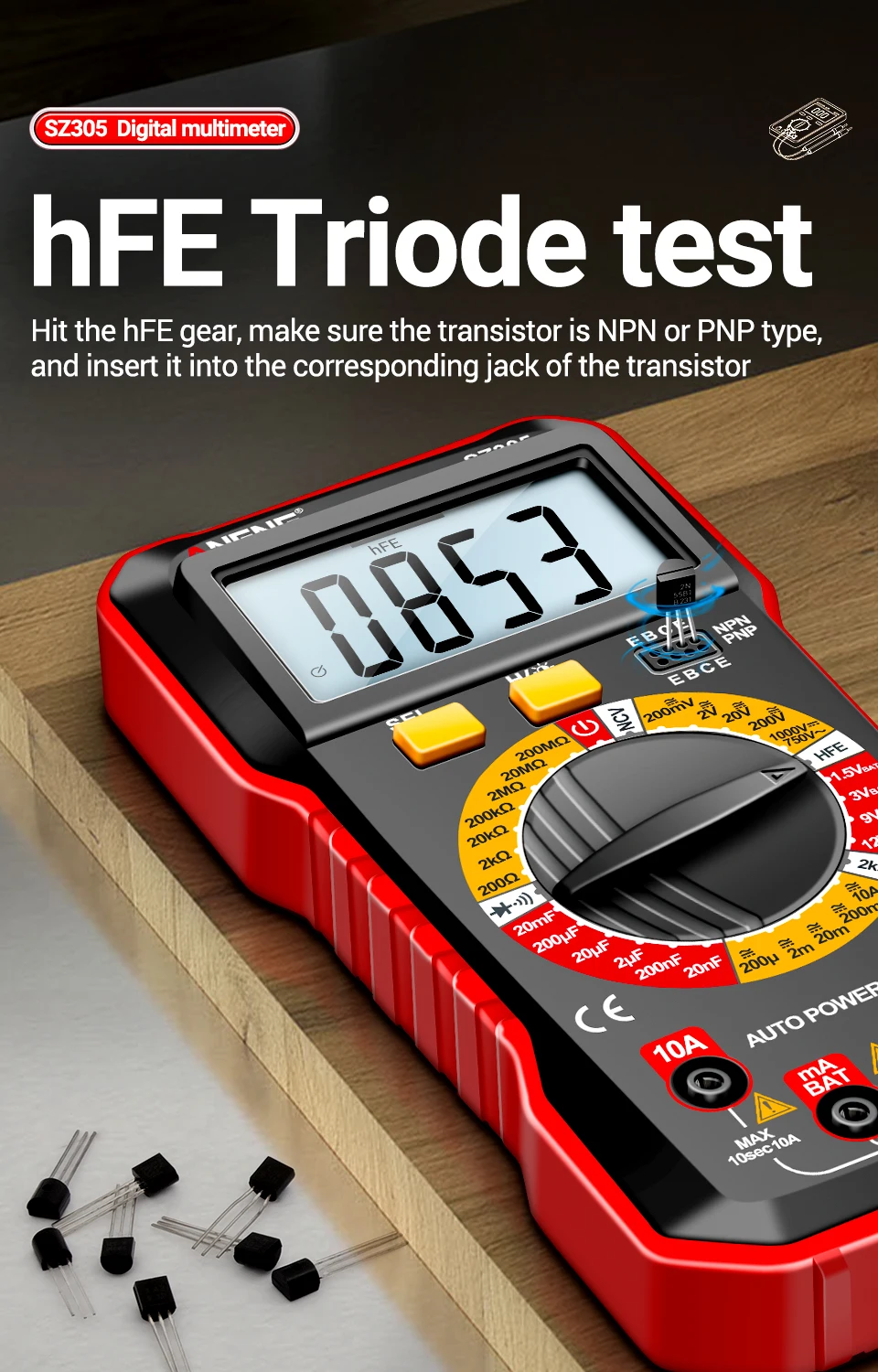

hFE triode |
√ |
||
|
Buzzer |
√ |
||
|

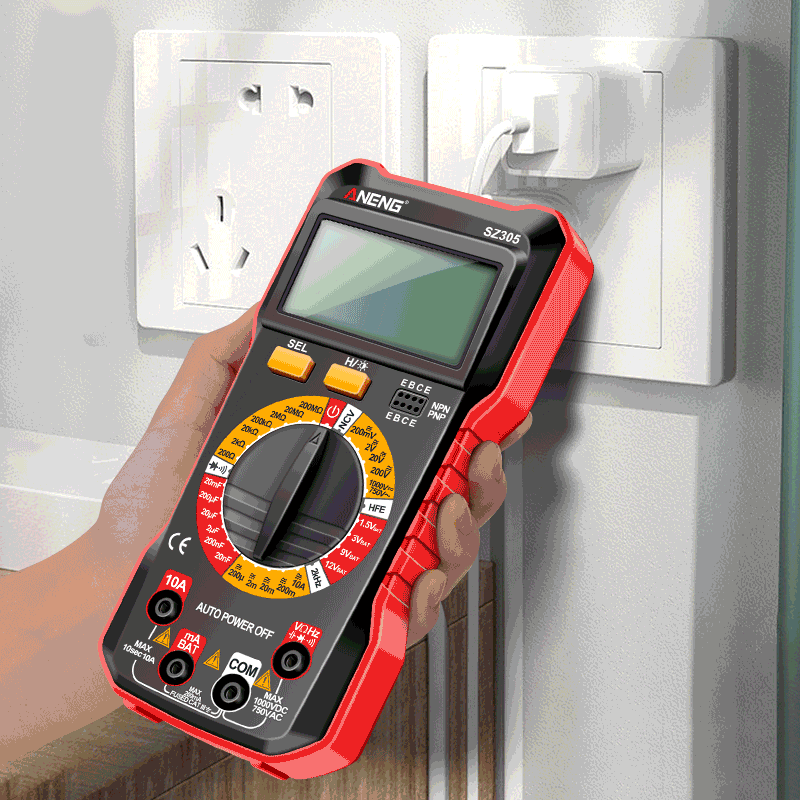

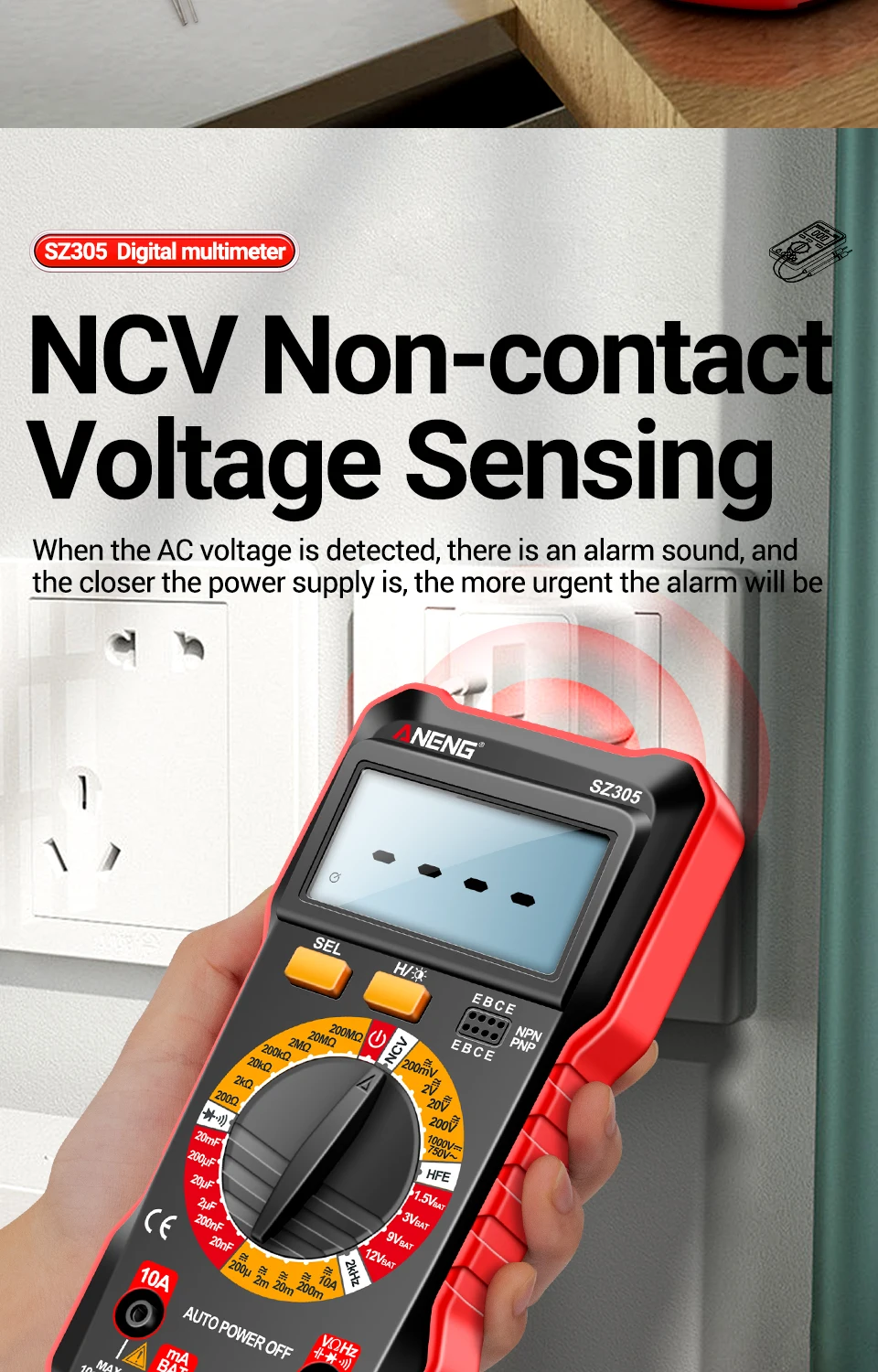

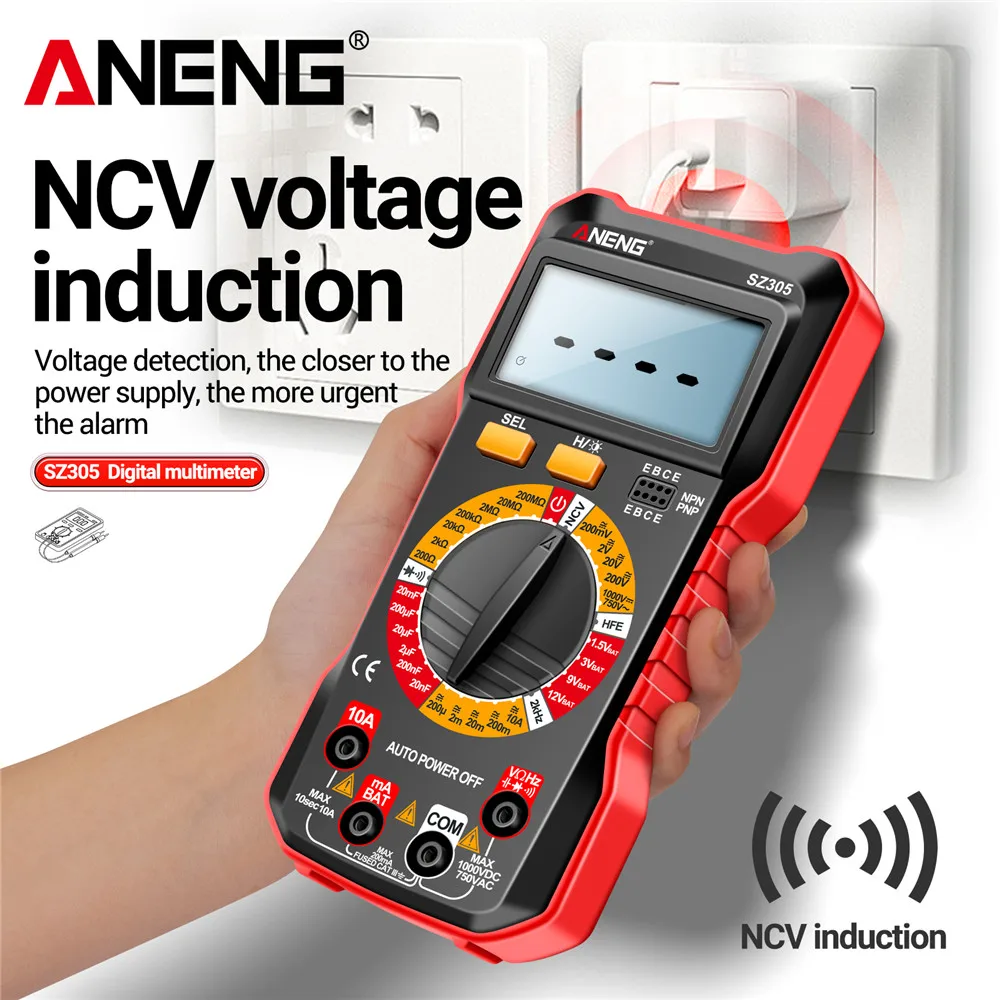

NCV voltage |
√ |
||
|
BAT battery |

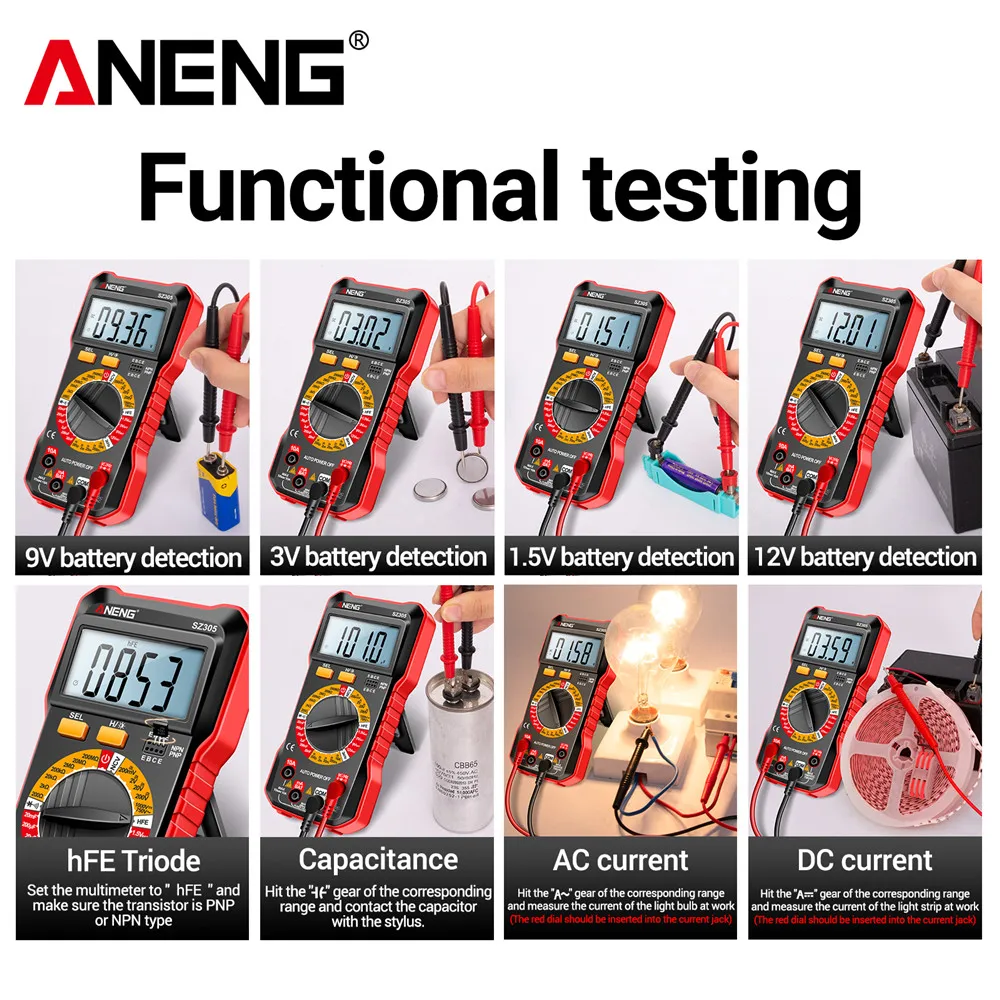

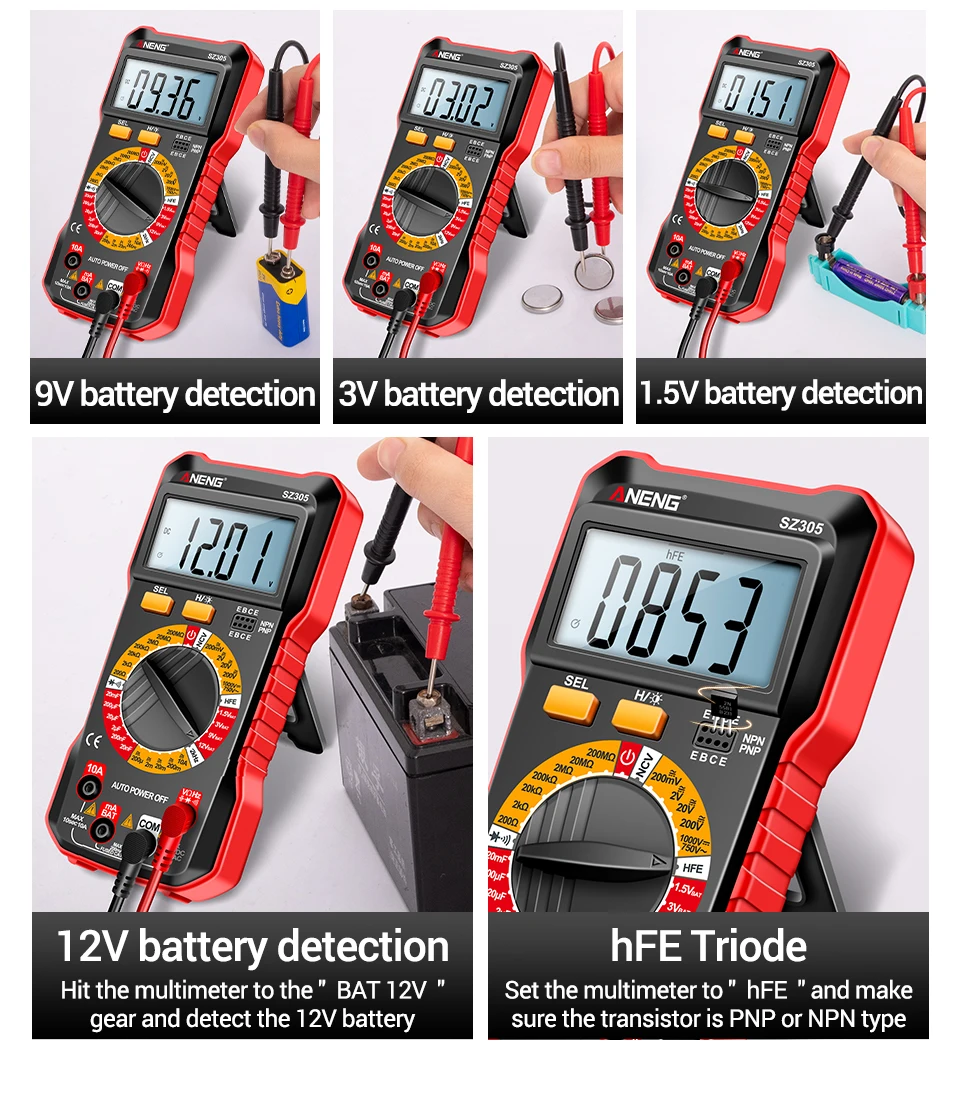

1.5V / 3V / 9V /12V Battery detection |
||
